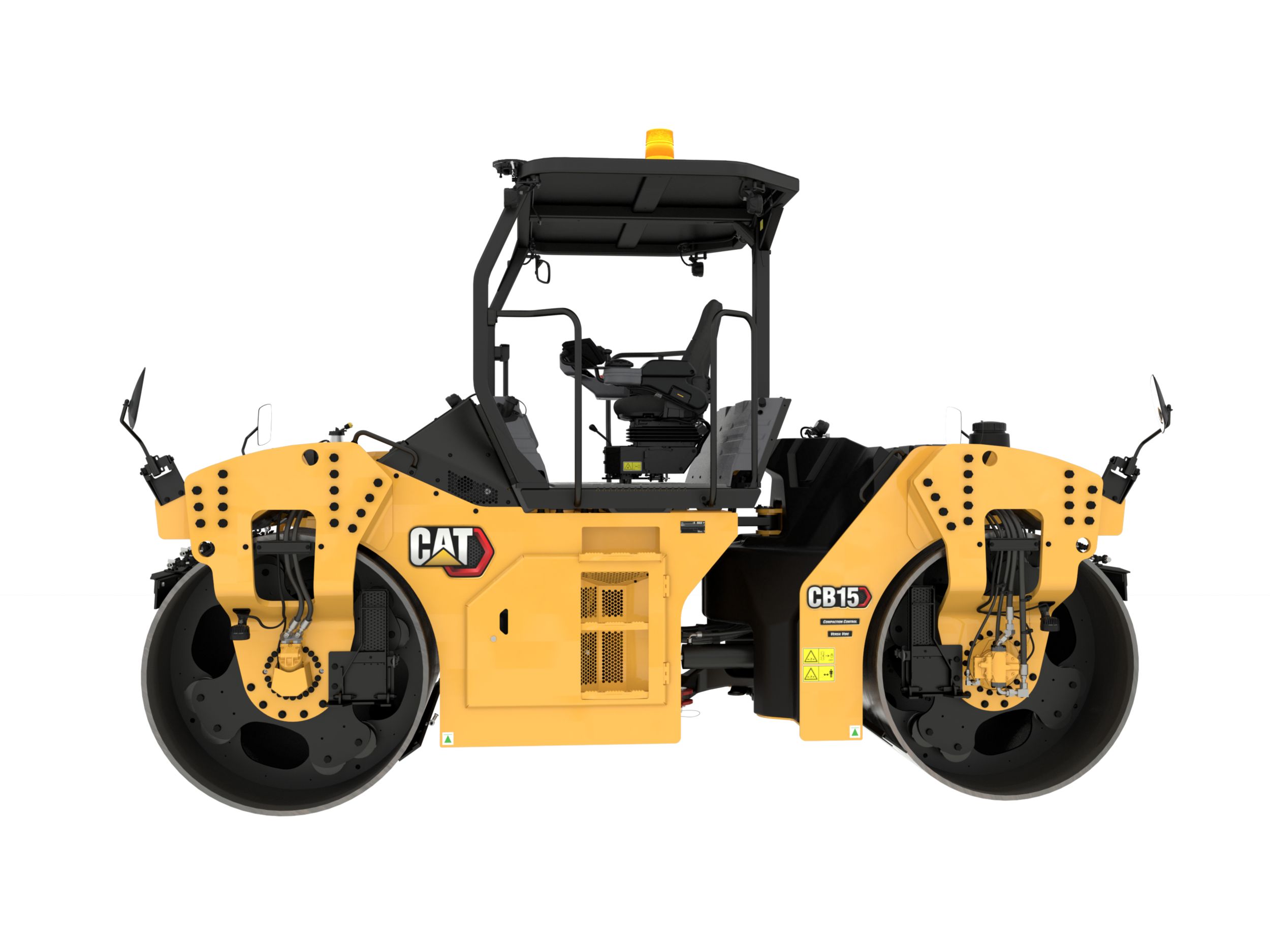

CB15 Tandem Vibratory Roller

360 View Video

Product Description

The CB15 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degree seating option make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.

Specifications
Us
Metric
Weights
Standard - Operating Weight
28958 lb
13135 kg
Maximum Operating Weight
30391 lb
13785 kg
Operating Specifications
Standard Compaction Width
84 in
2130 mm
Drum Offset
6 in
170 mm
Curb Clearance
28 in
723 mm
Ground Clearance
11.5 in
292 mm
Weights
Static Linear Load
186 lb/in
33 kg/cm
Engine
Engine Model
Cat_C4.4
Gross Power
142 HP
106 kW
Travel Speeds
High
8 mile/h
13 km/h
Low
4 mile/h
7 km/h
Dimensions
Overall Length
15.5 ft
4742 mm
Wheel Base
11.25 ft
3450 mm
Height - With ROPS/FOPS
10 ft
3068 mm
Overall Width
92 in
2325 mm
Vibratory System
Centrifugal Force per Drum - Maximum
31069 lb
138.2 kN
Centrifugal Force per Drum - Minimum
12409 lb
55.2 kN
Maximum Amplitude
0.041 in
1.03 mm
Minimum Amplitude
0.01 in
0.3 mm
Maximum Frequency
2520 VPM
42 Hz
Minimum Frequency
2520 VPM
42 Hz
Vibration Selection
Independent per drum, front only, rear only, both
Service Refill Capacities
Fuel Tank Capacity
66 gal (US)
250 l
Water Spray Tank Capacity
264 gal (US)
1000 l
Standard/Optional

Standard Equipment

Operating Environment
Technology
Powertrain
Electrical System
Service and Maintenance
Safety

Optional Equipment

Operating Environment
Technology
Powertrain
Vibratory System
Safety
