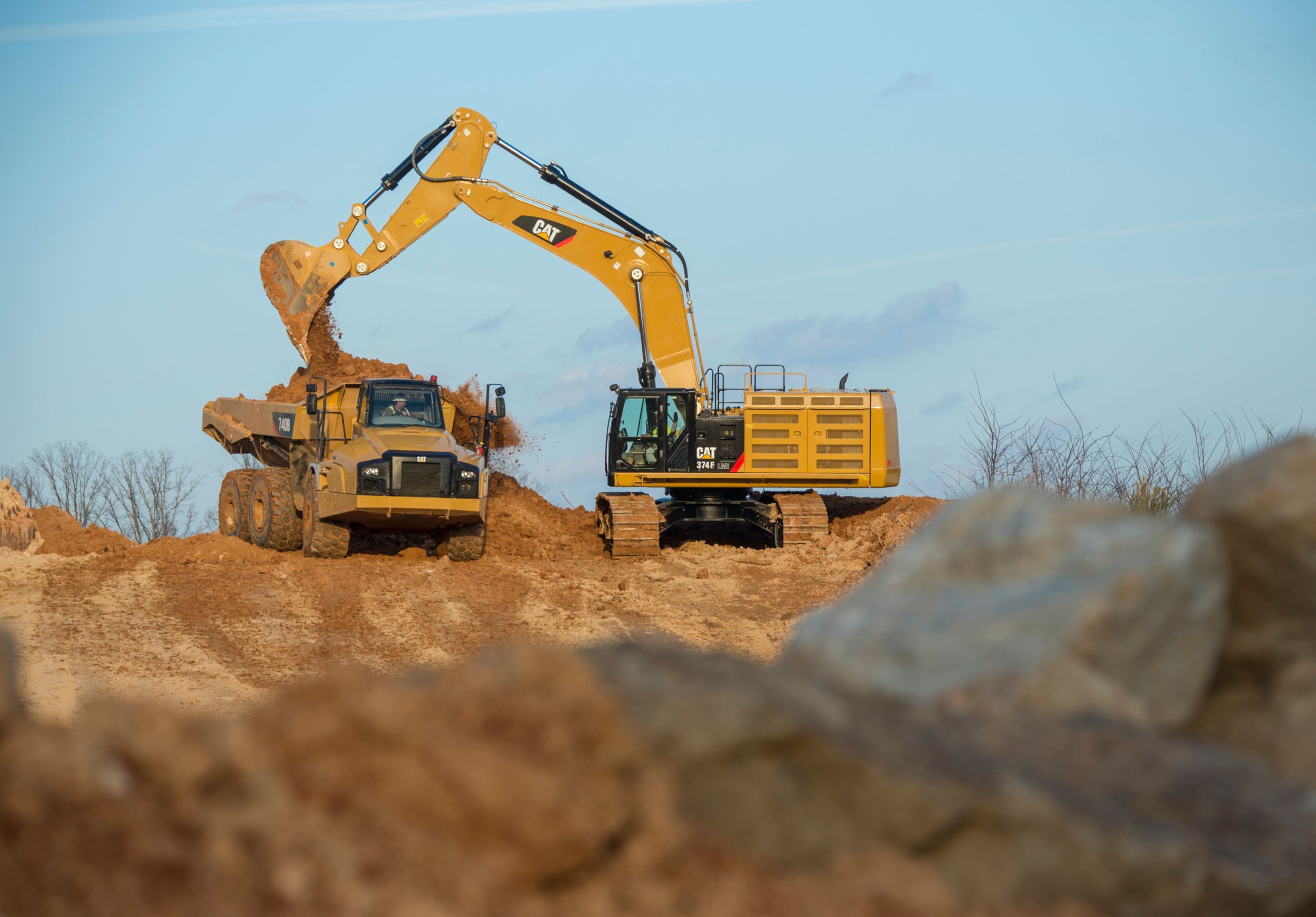

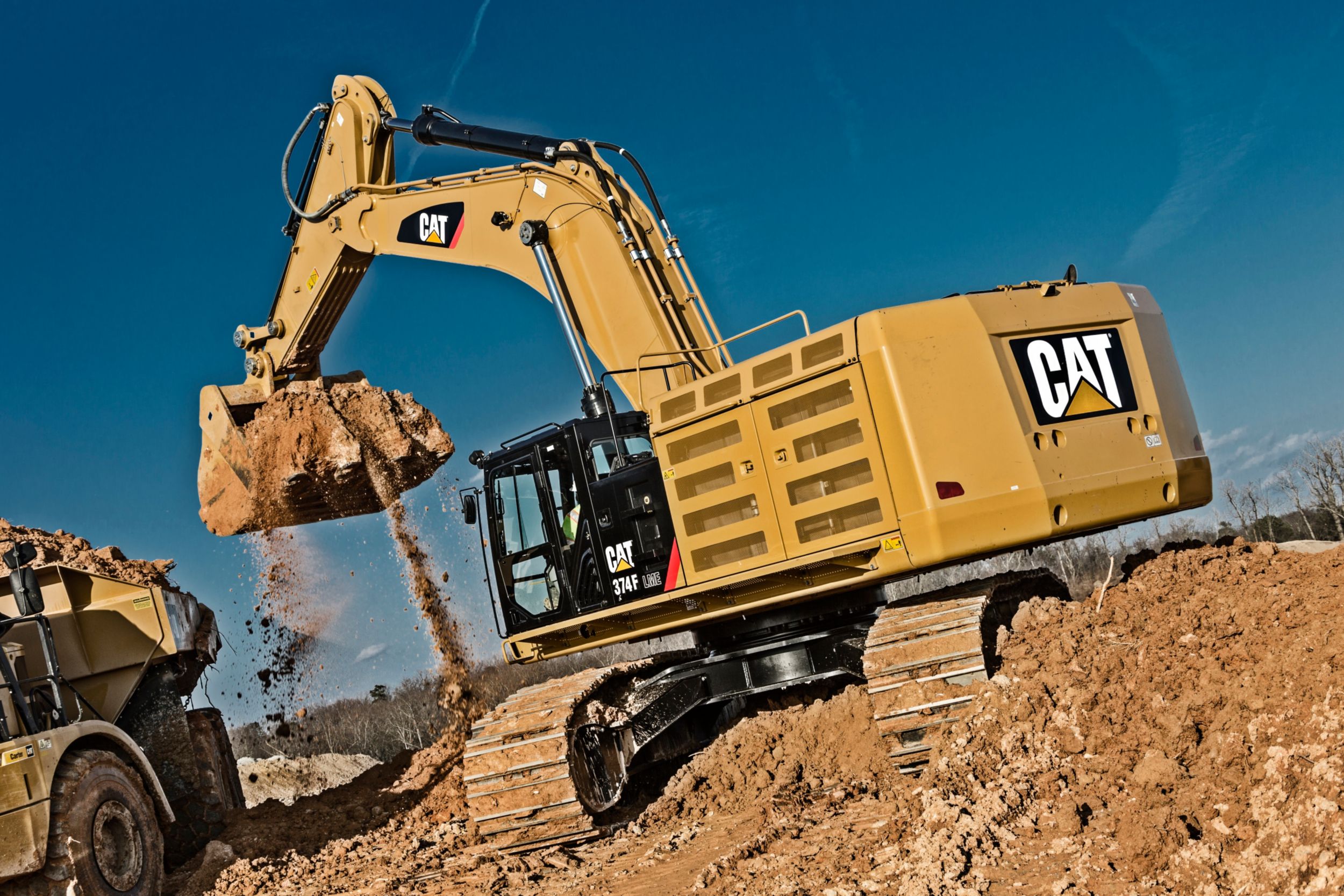

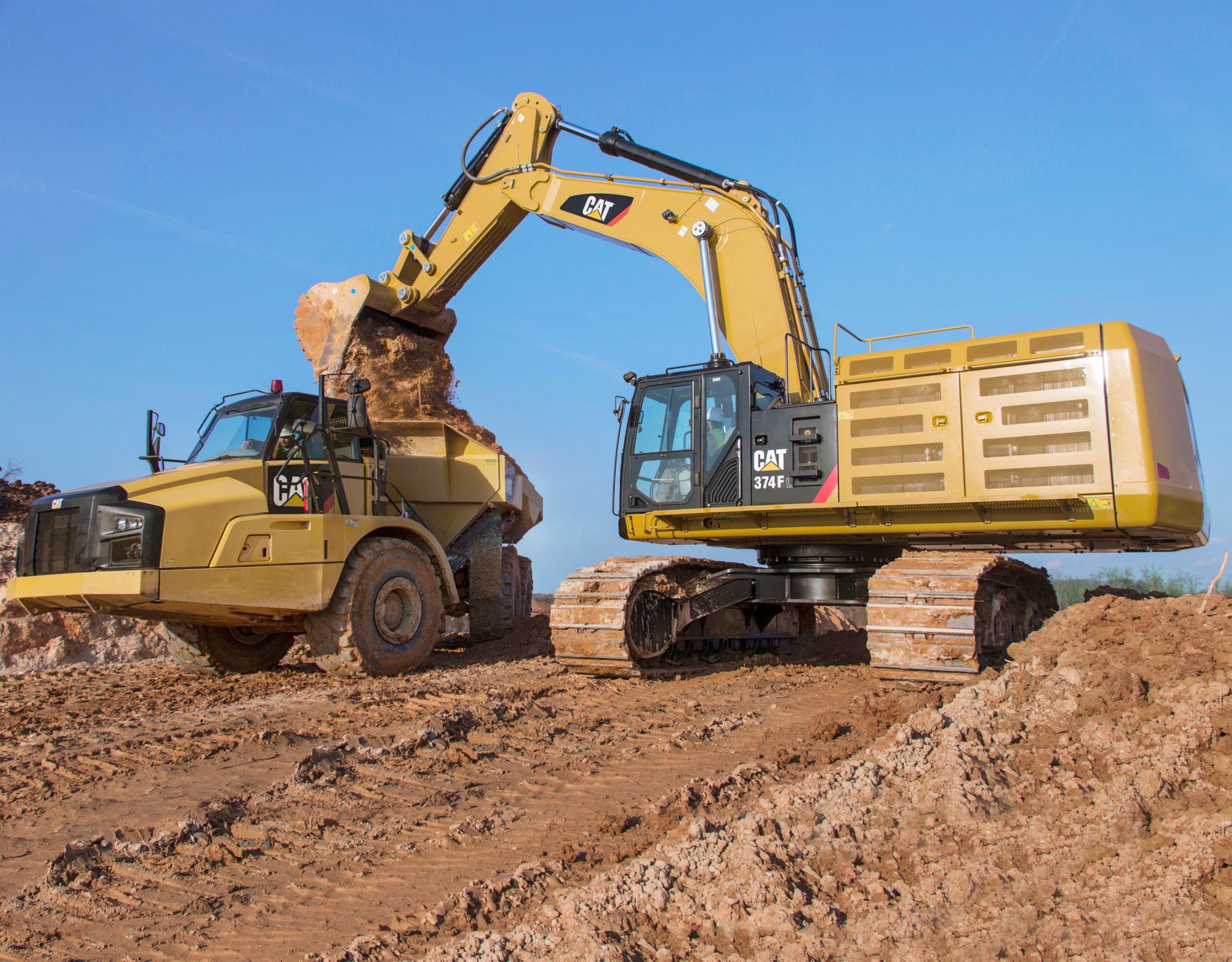

374F L Hydraulic Excavator

360 View Video

Product Description

The 374F is built to keep your production numbers up and your owning and operating costs down. Not only does the machine's C15 ACERT engine meet U.S. EPA Tier 4 Final, EU Stage IV and Korea Tier 4 emission standards, but it does so while giving you all the power, fuel efficiency, and reliability you need to succeed. Where the real power comes in is through advanced hydraulics and the new Adaptive Control System (ACS) valve. The ACS valve and other integrated components allow you to move tons of material all day long with a great deal of speed, precision, and efficiency. In fact, the hydraulic system and engine team together to keep fuel consumption to an absolute minimum – with zero impact on your productivity. When you add in a quiet operator environment that keeps you comfortable and productive, service points that make your routine maintenance quick and easy, and multiple Cat work tools that help you do a number of jobs very well, you simply won't find a better machine in this size class.

Specifications
Us
Metric
Engine
Engine Model
Cat® C15 ACERT™
Net Flywheel Power
472 hp
352 kW
Bore
5.4 in
137 mm
Stroke
6.7 in
171 mm
Displacement
928 in³
15.2 l
Engine RPM - Travel
1700 r/min
1700 r/min
Engine RPM - Operation
1600 r/min
1600 r/min
Net Power - ISO 9249/SAE J1349
472 hp
352 kW
Weights
Operating Weight
165721 lb
75170 kg
Maximum Operating Weight
165721 lb
75170 kg
Minimum Operating Weight
156461 lb
70970 kg
Track
Track Options - 650 mm - Double Grouser
26 in
650 mm
Track Options - 900 mm - Double Grouser
35 in
900 mm
Number of Shoes - Each Side
47
Number of Track Rollers - Each Side
8
Number of Carrier Rollers - Each Side
3
Track Options - 750 mm - Double Grouser
30 in
750 mm
Swing Mechanism
Swing Speed
6.5 r/min
6.5 r/min
Drive
Maximum Travel Speed
2.6 mile/h
4.1 km/h
Maximum Drawbar Pull
110718 lbf
492 kN
Hydraulic System
Swing System - Maximum Flow
No swing pump
WB2 Family Bucket Cylinder - Stroke
57.4 in
1457 mm
WB2 Family Bucket Cylinder - Bore
7.9 in
200 mm
Main System - Maximum Flow (× 2 pumps) - Implement
118 gal/min
448 l/min
Main System - Maximum Flow - Total - Travel
251 gal/min
952 l/min
Boom Cylinder - Bore
7.5 in
190 mm
Main System - Maximum Flow - Total - Implement
237 gal/min
896 l/min
Maximum Pressure - Equipment - Normal
5366 psi
37000 kPa
VB2 Family Bucket Cylinder - Stroke
56.4 in
1433 mm
Maximum Pressure - Travel
5076 psi
35000 kPa
Main System - Maximum Flow (× 2 pumps) - Travel
126 gal/min
476 l/min
Pilot System - Maximum Flow
16.6 gal/min
63 l/min
Boom Cylinder - Stroke
70.6 in
1792 mm
Stick Cylinder - Stroke
83.4 in
2118 mm
Stick Cylinder - Bore
8.3 in
210 mm
VB2 Family Bucket Cylinder - Bore
7.5 in
190 mm
Maximum Pressure - Swing
4264 psi
29400 kPa
Pilot System - Maximum Pressure
4.0-4.4 MPa (580-638 psi)
Service Refill Capacities
Fuel Tank Capacity
247 gal (US)
935 l
Cooling System
20 gal (US)
74 l
Engine Oil
16 gal (US)
60 l
Swing Drive - Each
3.2 gal (US)
12 l
Final Drive - Each
5.8 gal (US)
22 l
Hydraulic System - Including Tank
193 gal (US)
729 l
Hydraulic Tank
162 gal (US)
612 l
DEF Tank
13 gal (US)
48 l
Sound Performance
ISO 6395 - Exterior
108 dB(A)
108 dB(A)
ISO 6396 - Interior
72 dB(A)
72 dB(A)
Standards
Brakes
SAE J1026 APR90
Cab/FOGS
SAE J1356 FEB88 ISO 10262:2008
Engine
Note (3)
Rating at 1,600 rpm (Implement).
Note (1)
No engine power derating required below 2300 m (7,500 ft) altitude.
Sound Performance
Note (1)
When properly installed and maintained, the cab offered by Caterpillar, when tested with doors and windows closed according to ANSI/SAE J1166 OCT98, meets OSHA and MSHA requirements for operator sound exposure limits in effect at time of manufacture.
Engine
Note (2)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Power - ISO 14396
485 hp
362 kW
Emissions
The 374F L meets U.S. EPA Tier 4 Final, EU Stage IV and Korea Tier 4 emission standards.
Sound Performance
Note (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
Standard/Optional

Standard Equipment

MACHINE
CAB
UNDERCARRIAGE

Optional Equipment

FRONT LINKAGE
TRACK
GUARDS
AUXILIARY CONTROLS AND LINES
MISCELLANEOUS OPTIONS
