MH3050 Wheel Material Handler

360 View Video

Product Description

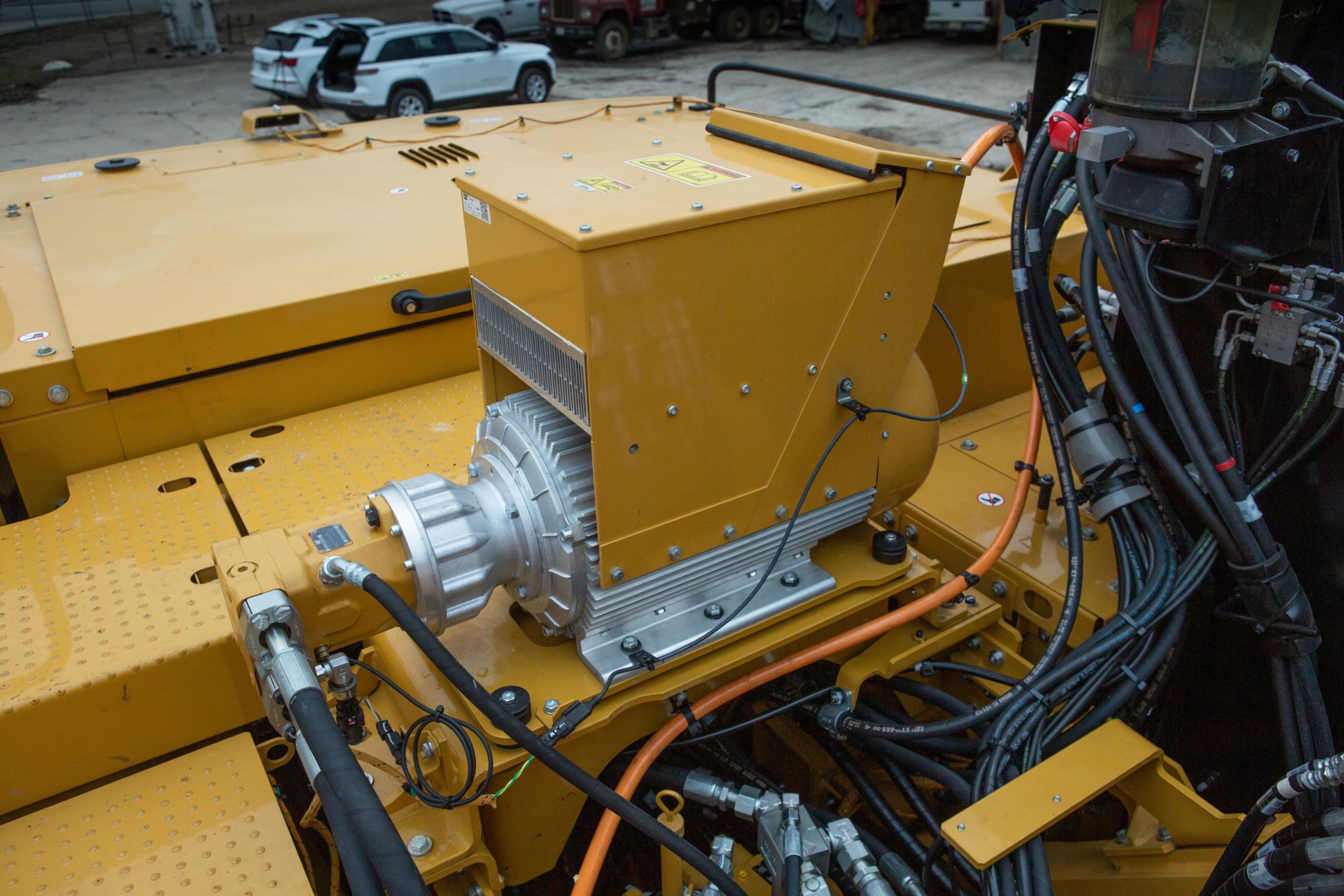

The Cat® MH3050 is a powerful and reliable material handler designed for high performance. Its wide undercarriage and stabilizer footprint help provide stability, while an optional generator helps expand versatility in material handling applications. Built with proven components from next generation Cat excavators and featuring a purpose-built material handler cab, the MH3050 helps deliver productivity, operator comfort, and long-lasting durability.

Specifications

Metric

Engine

Engine Model

Cat® C9.3B

Net Power - ISO 9249

346 hp

258 kW

Net Power - ISO 9249 (DIN)

351 hp (metric)

Engine Power - Maximum - ISO 14396

347 hp

259 kW

Engine Power - ISO 14396 (DIN)

352 hp (metric)

Bore

4.5 in

115 mm

Stroke

5.9 in

149 mm

Displacement

568 in³

9.3 l

Biodiesel Capability

Up to B20¹

Emissions

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.

Note (1)

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2)

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Transmission

Maximum Travel Speed

11.2 mile/h

18 km/h

Drawbar Pull

40915 lbf

182 kN

Maximum Gradeability

41%

Hydraulic System

Maximum Pressure - Implements

4496 psi

31000 kPa

Maximum Pressure - Swing

4264 psi

29400 kPa

Maximum Pressure - Travel

5076 psi

35000 kPa

Swing Mechanism

Swing Speed

7 r/min

Maximum Swing Torque

105820 lbf·ft

143 kN·m

Weights

Operating Weight

110250 lb

50000 kg

Note

Operating weight varies depending on configuration.

Service Refill Capacities

Fuel Tank Capacity

158.5 gal (US)

600 l

Cooling System

10.6 gal (US)

40 l

Engine Oil

8.5 gal (US)

32 l

Rear Axle - Housing (Differential)

10.6 gal (US)

40 l

Final Drive - Each

1.2 gal (US)

4.5 l

Powershift Transmission

0.8 gal (US)

3 l

Hydraulic System - Including Tank

111.7 gal (US)

423 l

Hydraulic Tank

49.1 gal (US)

186 l

Diesel Exhaust Fluid (DEF) Tank

21.1 gal (US)

80 l

Dimensions

Boom

MH 10.95 m (35'11")

Stick

Industrial 8.3 m (27'3")

Shipping Length

48.7 ft

14840 mm

Machine Length

22.5 ft

6850 mm

Tail Swing Radius

11.6 ft

3520 mm

Counterweight Clearance

5.3 ft

1630 mm

Cab Height- Lowered

12 ft

3670 mm

Cab Height-Lowered with OPG

12.2 ft

3720 mm

Cab Height-Raised

18.4 ft

6260 mm

Cab Height-Raised with OPG

20.7 ft

6310 mm

Wheel Base

11.2 ft

3400 mm

Shipping Width

11.4 ft

3490 mm

Ground Clearance

0.9 ft

310 mm

Undercarriage Length

22.2 ft

6750 mm

Working Ranges

Maximum Reach

59.3 ft

18060 mm

Boom

MH 10.95 m (35'11")

Stick

Industrial 8.3 m (27'3")

Maximum Height

62.4 ft

19030 mm

Minimum Dump Height

17.5 ft

5530 mm

Maximum Depth

18.9 ft

5760 mm

Boom Pin Height

44.2 ft

13470 mm

Air Conditioning System

Note (1)

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.09 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.559 metric tonnes (1.718 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.09 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Sustainability

Recyclability

90%

Standard/Optional

Standard Equipment

Note

Boom and Stick

Cab

Cat Technology

Electrical

Engine

Hydraulics

Safety and Security

Service and Maintenance

Undercarriage and Structures

Optional Equipment

Note

Cab

Electrical

Engine

Safety and Security

Undercarriage and Structures
