CW16 Pneumatic Roller

360 View

Product Description

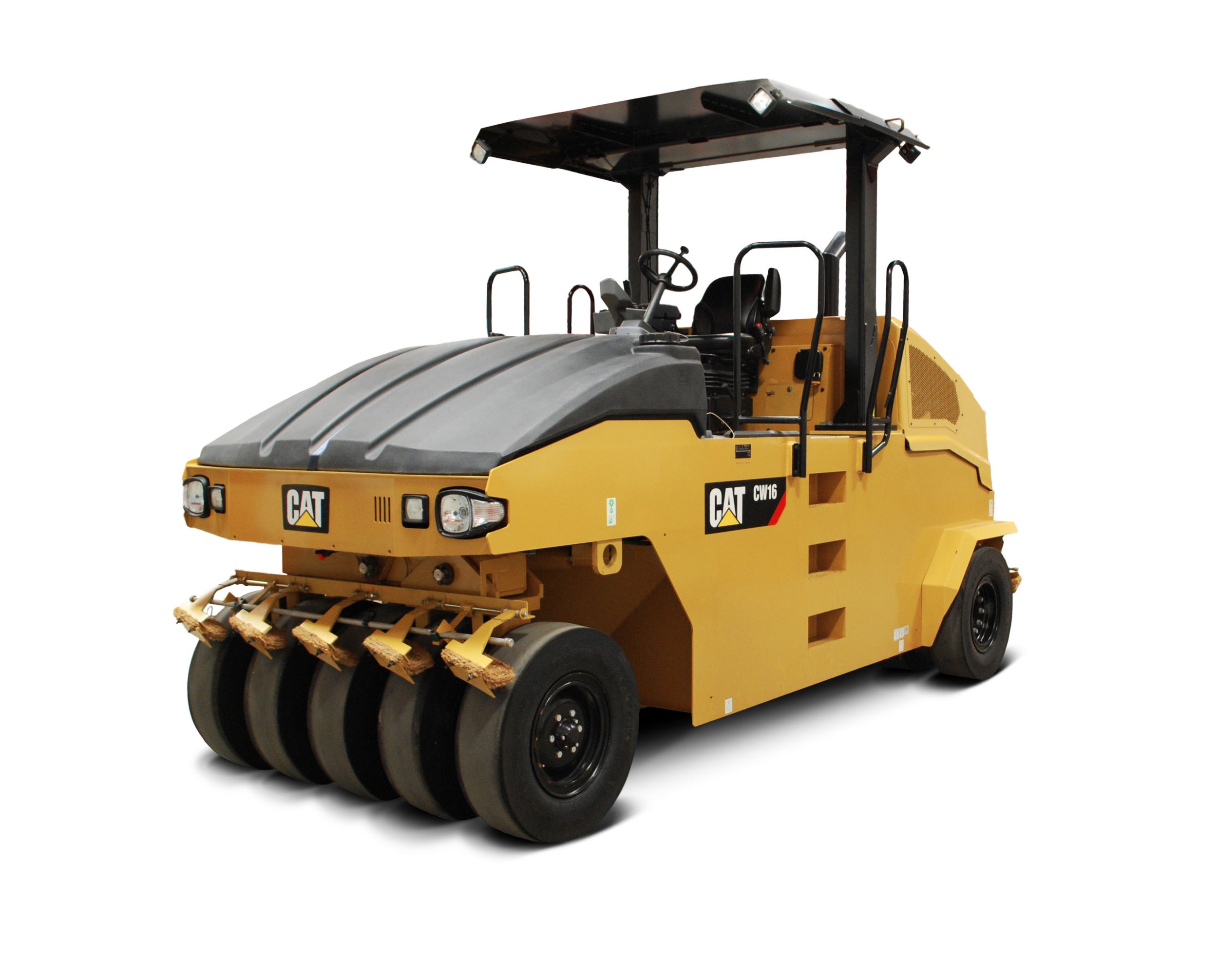

The Cat® CW16 is a standard 9-wheel Pneumatic Roller with an operating weight range of 5200 kg to 15 000 kg (11,164 lb - 33,069 lb) and compaction width of 1754 mm (69"). An optional 11-wheel option increases the compaction width to 2132 mm (84"). Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.

Specifications
Us
Metric
Weights
Operating Weight - 9 Wheel Base Machine
11466 lb
5200 kg
Operating Weight - Maximum Ballast
33069 lb
15000 kg
Operating Specifications
Compaction Width
69 in
1754 mm
9 Wheel Compaction Width - With Radial Tire
68 in
1728 mm
Dimensions
Overall Length
14.1 ft
4290 mm
Height - ROPS
9.8 ft
3000 mm
Height - Steering Wheel
91 in
2320 mm
Operating Specifications
Travel Speed - Maximum
12 mile/h
19 km/h
Ground Clearance
9.5 in
241 mm
Inside Turn Radius - 9 Wheel
148 in
3761 mm
Turning Radius - Outside
255 in
6455 mm
Engine
Engine Model
Cat C3.6
Gross Power
100.6 hp
75 kW
Service Refill Capacities
Fuel Tank Capacity
38 gal (US)
146 l
Water Spray Tank Capacity
92 gal (US)
348 l
Standard/Optional

Standard Equipment

Operating Environment
Powertrain
Electrical System
Wheels and Spray System
Service and Maintenance
Safety

Optional Equipment

Operating Environment
Technology
Powertrain
Wheels and Spray System
Service and Maintenance
Safety
