CB7 Tandem Roller

Video

Product Description

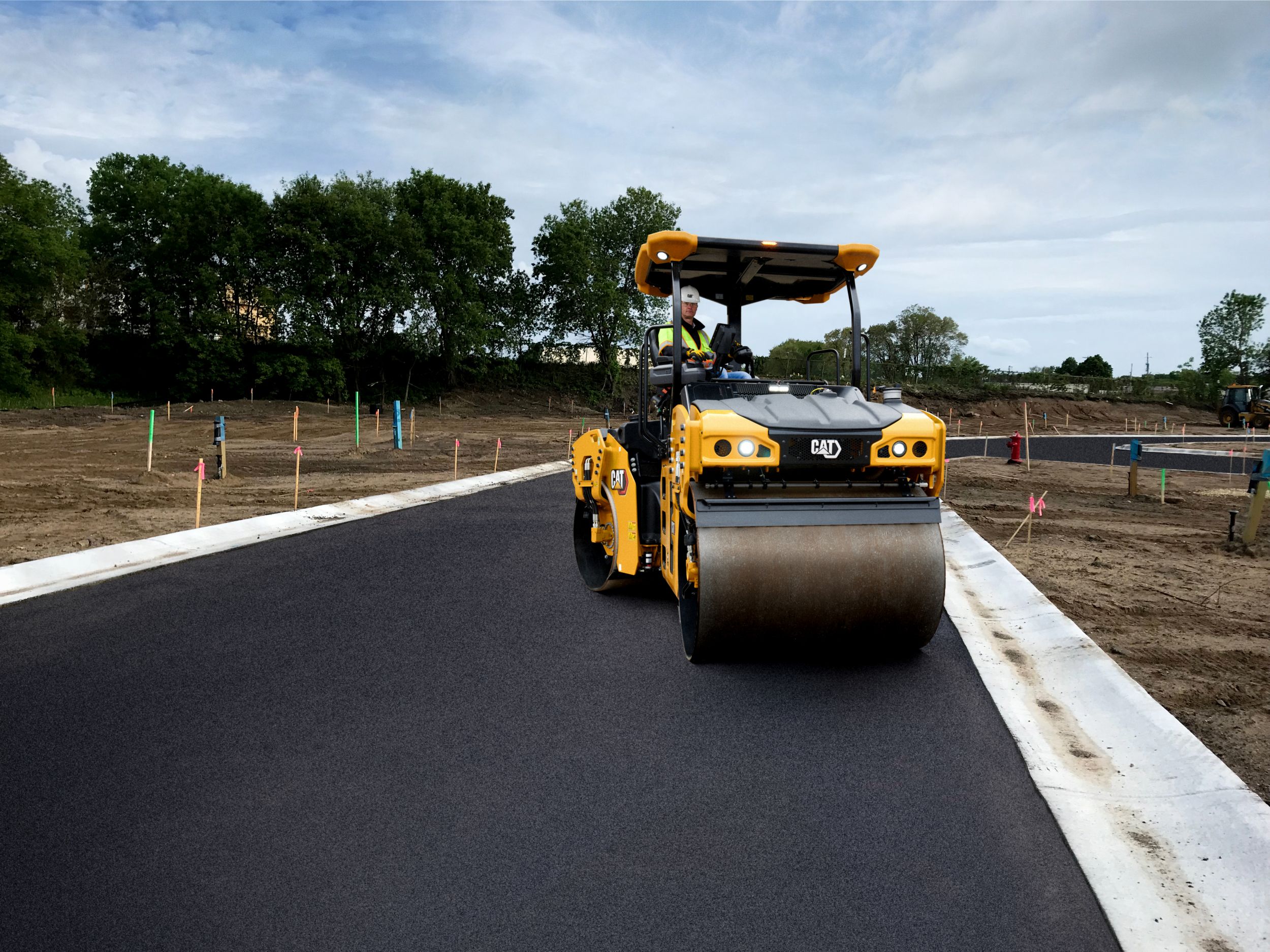

The Cat® CB7 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.

Specifications
Us
Metric
Weights
Standard Operating Weight with ROPS
19015 lb
8625 kg
Maximum Operating Weight with ROPS
19224 lb
8720 kg
Operating Specifications
Standard Compaction Width
59 in
1500 mm
Maximum Compaction Width
65 in
1670 mm
Travel Speed - Maximum
7 mile/h
11 km/h
Static Linear Load
161 lb/in
28.6 kg/cm
Engine
Engine Model
Cat� C3.6
Gross Power
100 HP
74.4 kW
Dimensions
Height - With ROPS/FOPS
118 in
2984 mm
Wheel Base
130 in
3300 mm
Drum Diameter
44 in
1108 mm
Overall Length
179 in
4558 mm
Overall Width
78 in
1977 mm
Vibratory System
Drum Width
59 in
1500 mm
Centrifugal Force per Drum - Maximum
17602 lb
78.3 kN
Centrifugal Force per Drum - Minimum
11982 lb
53.3 kN
Nominal Amplitude - High
0.026 in
0.65 mm
Nominal Amplitude - Low
0.012 in
0.31 mm
Vibration Selection
Independent per drum, front only, rear only, both
Service Refill Capacities
Fuel Tank Capacity
36 gal (US)
137 l
Water Spray Tank Capacity
195 gal (US)
740 l
Standard/Optional

Standard Equipment

Operating Environment
Technology
Powertrain
Electrical System
Vibratory System
Service and Maintenance
Safety

Optional Equipment

Operating Environment
Technology
Powertrain
Vibratory System
Safety
