C4.4 (Electronic Control System)

Video

Product Description

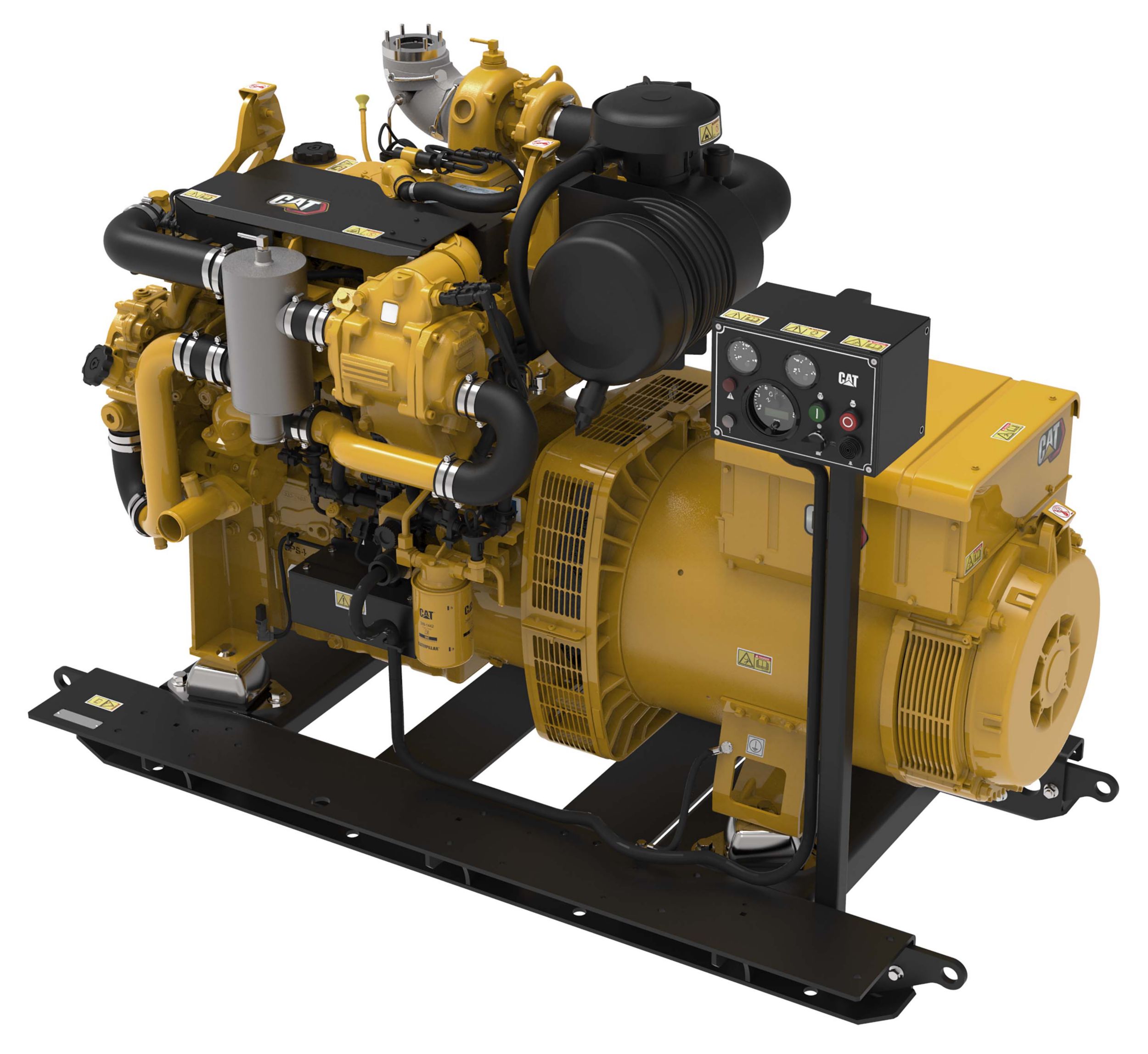

C4.4 (Electronic Control System)

Specifications
Us
Metric
Power Rating
Power Range
65/75/99/118 ekW @ 1800 rpm (60 Hz), 65/80/99 ekW @ 1500 rpm (50 Hz)
Engine Specifications
Emissions
U.S. EPA Tier 3 certified, EU Stage V certified
Configuration
In-line 4, 4-stroke-cycle diesel
Rated Engine Speed
1500/1800 rpm
Bore
4.13 in
105 mm
Stroke
5 in
127 mm
Displacement
268 in³
4.4 l
Aspiration
Turbocharged-aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))
Governor
Electronic (A5 ECM)
Refill Capacity
Lube Oil System w/Oil filter change: 11 L 2.8 gal)
Oil Change Interval
500 hrs
Cooling
Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling
Flywheel Housing
SAE No. 03 with SAE 11.5 flywheel (126 teeth)
Dimensions & Weights
Maximum Length
80.2 in
2037 mm
Maximum Height
78.7 in
1999 mm
Maximum Width
38.3 in
986 mm
Maximum Engine Dry Weight
3389 lb
1537 kg
Standard/Optional

Standard Equipment

COOLING SYSTEM
EXHAUST SYSTEM
FUEL SYSTEM
LUBE SYSTEM
MOUNTING SYSTEM
STARTING SYSTEM
GENERAL

Optional Equipment

GENERAL
