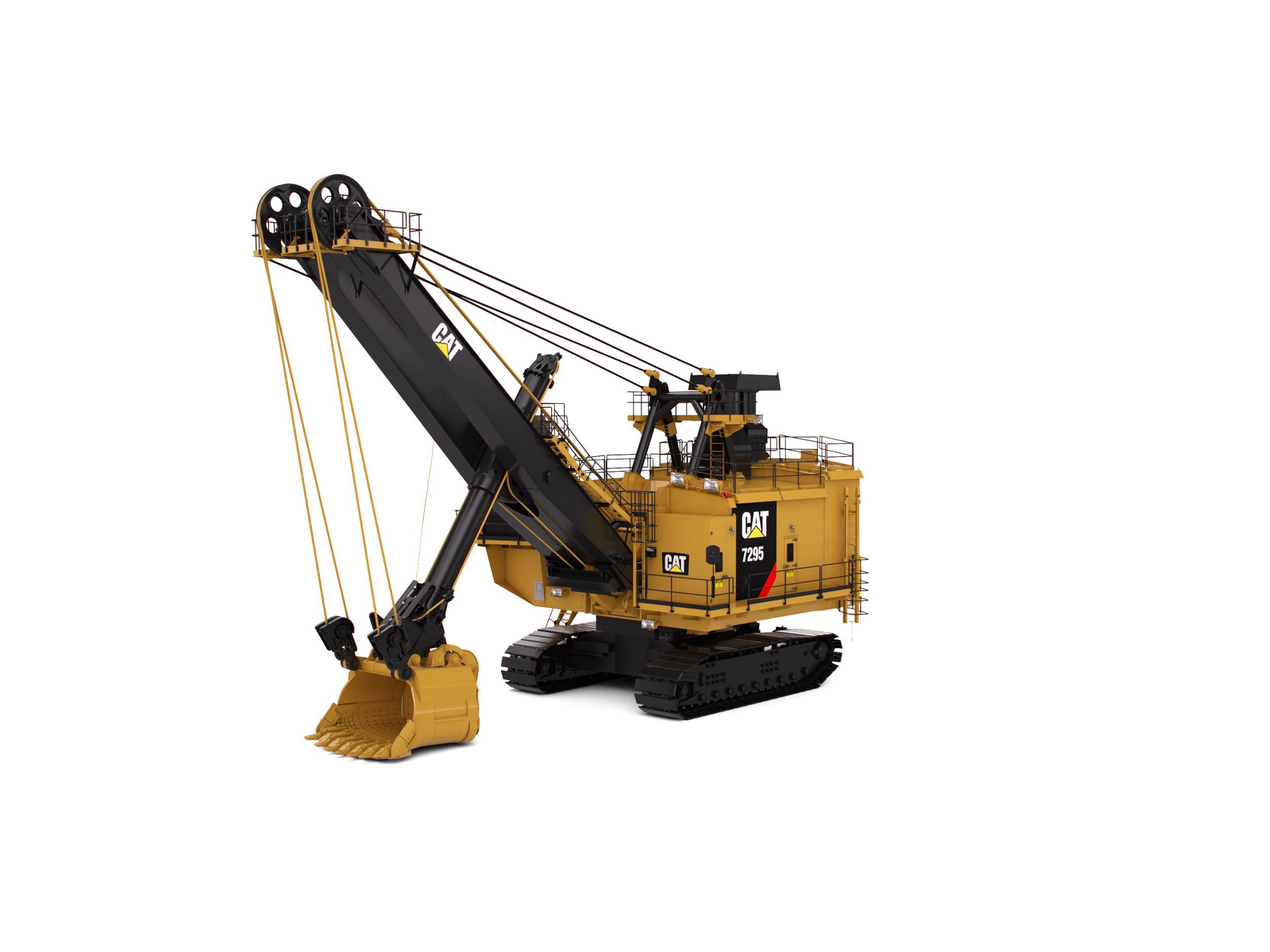

7295 Electric Rope Shovel

360 View Video

Product Description

Cat® Electric Rope Shovels combine immense payload capability with low maintenance requirements and high reliability to deliver the lowest cost-per-ton loading solution for long-life mines. Our smallest rope shovel, the Cat 7295 has a payload of 45 tonnes (50 tons) — about half the payload of our flagship 7495. But like its larger counterpart, the 7295 features AC IGBT electrics for greater uptime, lower operating costs and faster cycle times. The 7295 is cleaner and more efficient than diesel-powered machines, plus its regenerative braking technology feeds electrical energy back to the grid.

Specifications
Us
Metric
Dimensions
Dipper Payload
50 t
45 t
Dipper Capacity
19.1-38.2 m3 (25-50 yd3)
Note
Dependent on application and material density.
Weights
Working Weight - With Dipper and Standard Links
1748837 lb
793259 kg
Ballast - Furnished By Customer
352000 lb
159665 kg
Note (1)
These weights will vary slightly depending upon dipper and optional equipment selection.
Note (2)
All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.
Main Structures
Ground Bearing Pressure
Ground bearing pressure is dependent upon many factors.
Crawler Dimensions - Overall Width 182.9 cm (72 in) Treads, Standard
28.22 in
8.6 cm
Ground Bearing Pressure - 182.9 cm (72 in) Treads
39 in
269 cm
Upper Works Overall Width - Including Standard Walkways
41.33 in
12.6 cm
Planetary Propel
Dual-motor independent drive.
Swing
Parallel shaft gear cases, driven by a vertically mounted motor, are located on either side of the revolving frame.
Ground Bearing Pressure - Total Effective Bearing Area
315.6 ft²
29.3 m²
Hoist
A motor coupled to two gear reductions drives a 137 cm (54 in) hoist drum.
Optimal Working Ranges*
Dumping Height - With Clearance to Open Dipper Door
27.56 ft
8.4 m
Cutting Radius - Maximum
67.59 ft
20.6 m
Revolving Frame Tail Swing Radius
25.59 in
7.8 m
Radius of Level Floor
48.88 ft
14.9 m
Cutting Height - Maximum
45 ft
13.7 m
Note (1)
Optimal working ranges based on loading a Cat® 785D truck.
Note (2)
*All specifications are based on a 19 m3 (25 yd3) dipper and standard 182.9 cm (72 in) treads.
Lube System
Type
Automatic, single-line system for open gear lubricant and grease.
Components (1)
6 pumps (4 for open gear lubricant and 2 for grease) located in an insulated, heated, double-walled lube room.
Electrical
Power Requirements - 60 Hz
4,160V, 7,200V
Power Requirements - Peak power
2886 HP
2152 kW
Drive
IGBT Acutrol drive system.
Power Requirements - Voltage
3 phase, 50/60 Hz, 7,200V
Power Requirements - 50 Hz
6,000V, 6,600V, 7,200V
Power Requirements - Average Power Demand
538-753 kW (721-1,010 hp)
Note
Other voltages available to suit customer requirements.
Front End
Standard Rope Data - Retract - Diameter
2.25 in
57 mm
Standard Rope Data - Dipper Trip - Diameter
0.625 in
16 mm
Standard Rope Data - Boom Suspension - No.
4
Standard Rope Data - Crowd - No.
1
Standard Rope Data - Boom Suspension - Diameter
2.75 in
70 mm
Components
One piece, forged, seamless tubular dipper handle and wide-spread boom point sheaves equipped with hoist ropes and dipper padlocks to stabilize dipper handle.
Standard Rope Data - Retract - No.
1
Standard Rope Data - Hoist - Diameter
2.375 in
60 mm
Standard Rope Data - Crowd - Diameter
2.25 in
57 cm
Standard Rope Data - Dipper Trip - No.
1
Crowd
Rope Crowd: the crowd machinery is located at the front center of the revolving frame; consisting of a motor, brake, drum and gearing. Plastic-impregnated crowd and retract ropes are used to move the dipper handle fore and aft.
Standard Rope Data - Hoist - No.
2
Note
High impact ropes available as an option
Lube System
Components (2)
External fast fill from lower level.
Standard/Optional
