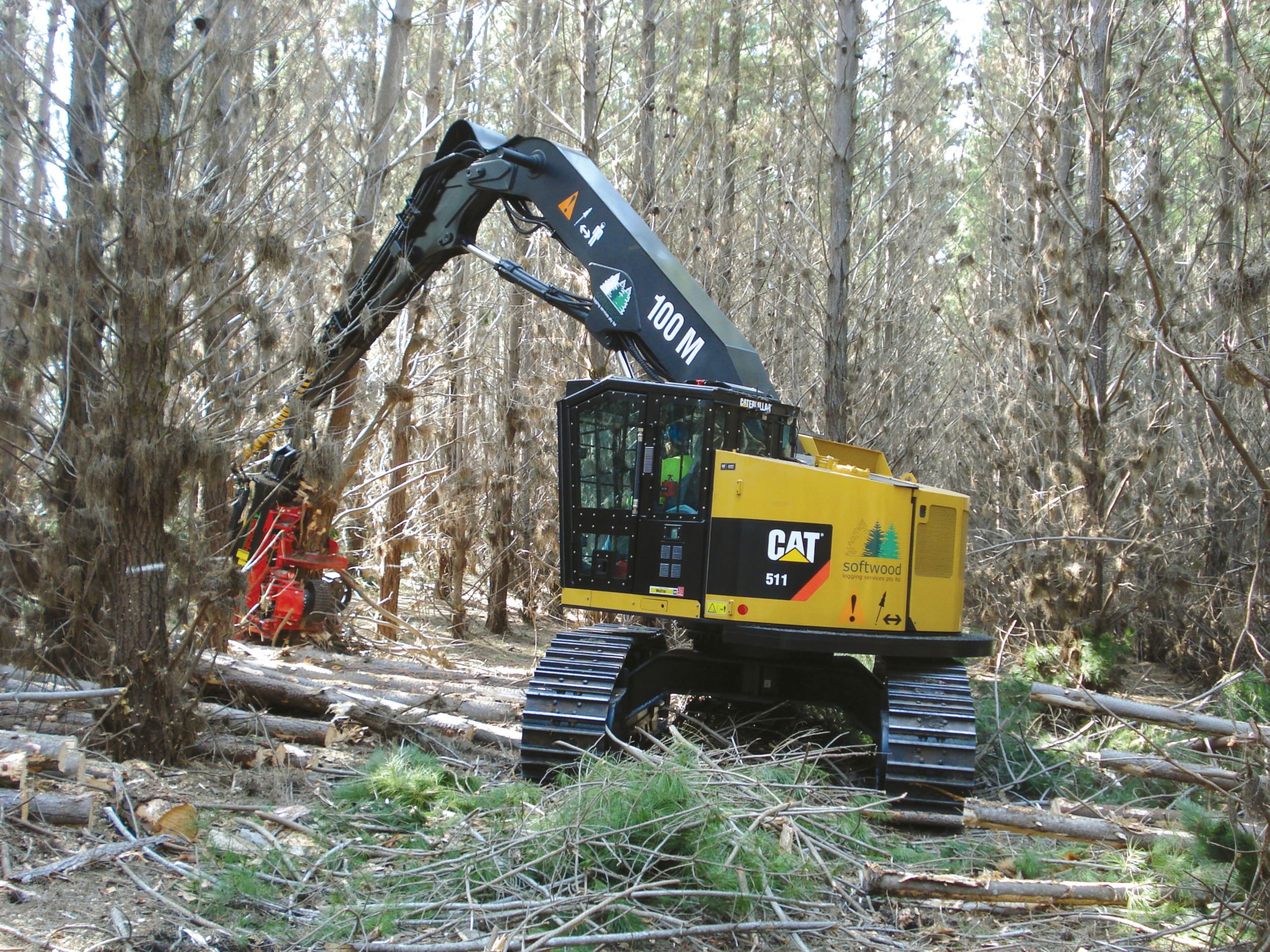

511 Track Feller Buncher

Product Description

A robust undercarriage utilizes proven components, customized for demanding forestry conditions. The unique boom design provides industry leading lift capacity throughout full reach range, a benefit in large timber. Four models are available with just the right horsepower, track size and hydraulic configurations to fit your application needs.

Specifications
Us
Metric
Engine
Gross Power
247 HP
184.2 kW
Engine Model
Cat® C9 ACERT™
Rated Power
228 HP
170 kW
Displacement
537 in³
8.8 l
Operating Specifications
Maximum Reach - With Attachment
26.6 ft
8.1 m
Maximum Reach - With Attachment - Track Harvester Configuration
32 ft
9.8 m
Bare Pin Lift at Maximum Reach - Without Attachment
7100 kg (15600 lb) @ 6.1 m (20 ft)
Bare Pin Lift at Maximum Reach - Without Attachment - Track Harvester Configuration
4100 kg (9100 lb) @ 9.0 m (29.5 ft)
Track
Undercarriage Size
325 HEX
Undercarriage Pitch
8 in
203.2 mm
Track Gauge
102 in
2591 mm
Track Length
180 in
4572 mm
Ground Clearance
30 in
762 mm
Tractive Effort
67000 lb
30391 kg
Hydraulic System
Pump Size - Travel Circuit
10.98 in³
180 cm³
Pump Size - Boom, Implements
10.98 in³
180 cm³
Pump Size - Saw Motor
11.59 in³
190 cm³
Service Refill Capacities
Fuel Tank
140 gal (US)
530 l
Pony Fuel Tank - Optional
90 gal (US)
341 l
Cooling System
16.1 gal (US)
61 l
Engine Oil
10.3 gal (US)
39 l
Hydraulic Tank
69.2 gal (US)
262 l
Hydraulic System
79.3 gal (US)
300 l
Swing Drive
2.6 gal (US)
10 l
Weights
Operating Weight - Without Attachment
53710 lb
24362 kg
Operating Weight - Without Attachment - Track Harvester Configuration
52440 lb
23790 kg
Dimensions
Shipping Length - With Attachment
423 in
10744 mm
Shipping Length - Without Attachment
333 in
8458 mm
Height
133 in
3378 mm
Width - Minimum
126 in
3200 mm
Dimensions - Track Harvester Configuration
Shipping Length - Without Attachment
446 in
11328 mm²
Height - Without Attachment
133 in
3378 mm
Width - Minimum - Without Attachment
126 in
3200 mm
Standard/Optional

Standard Equipment

Electrical
Guards
Operator Environment
Powertrain
Undercariage
Other Standard Equipment
Hydraulics
Antifreeze

Optional Equipment

Track Systems
Other Equipment
Field Installed Attachments
