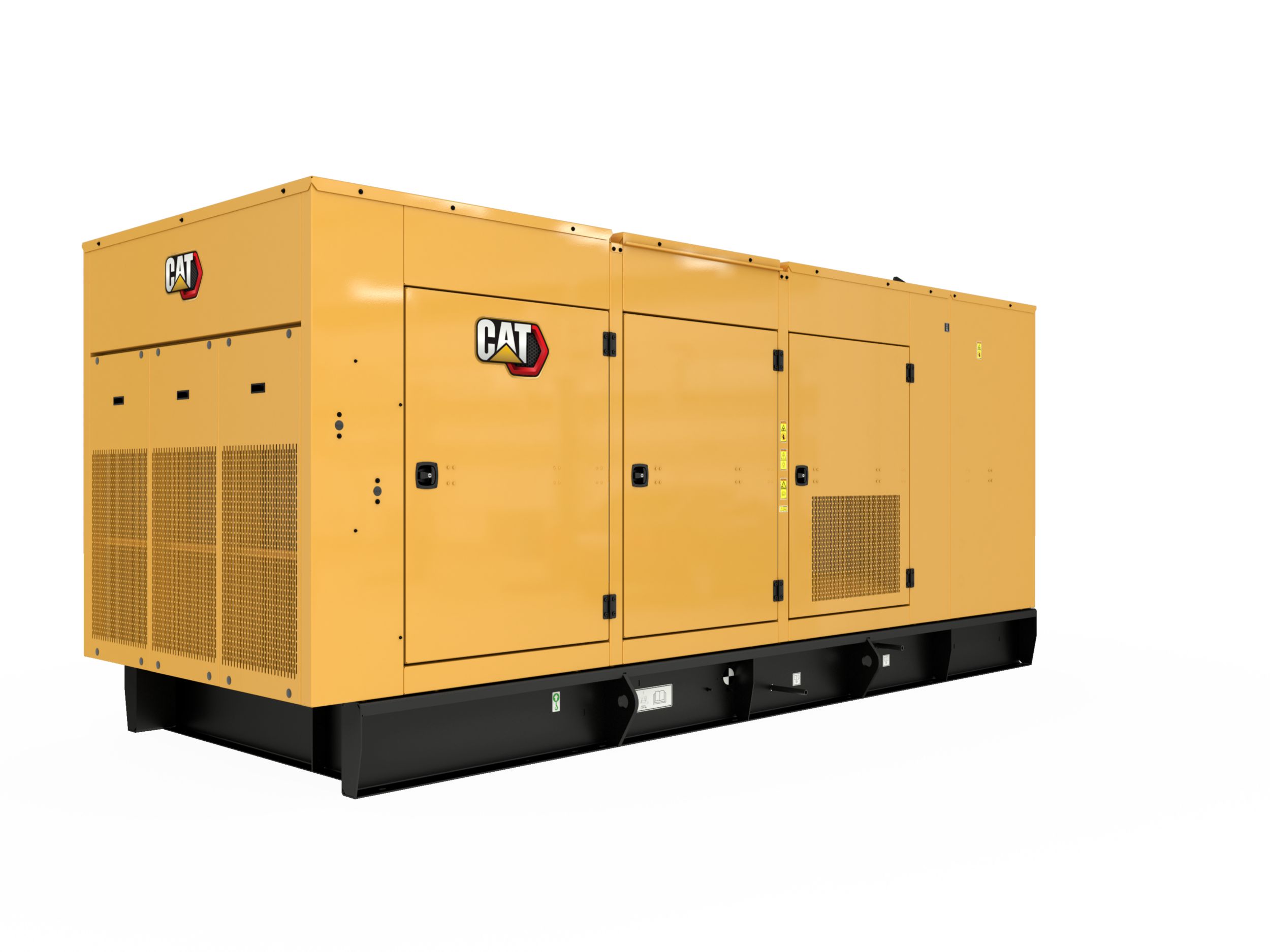

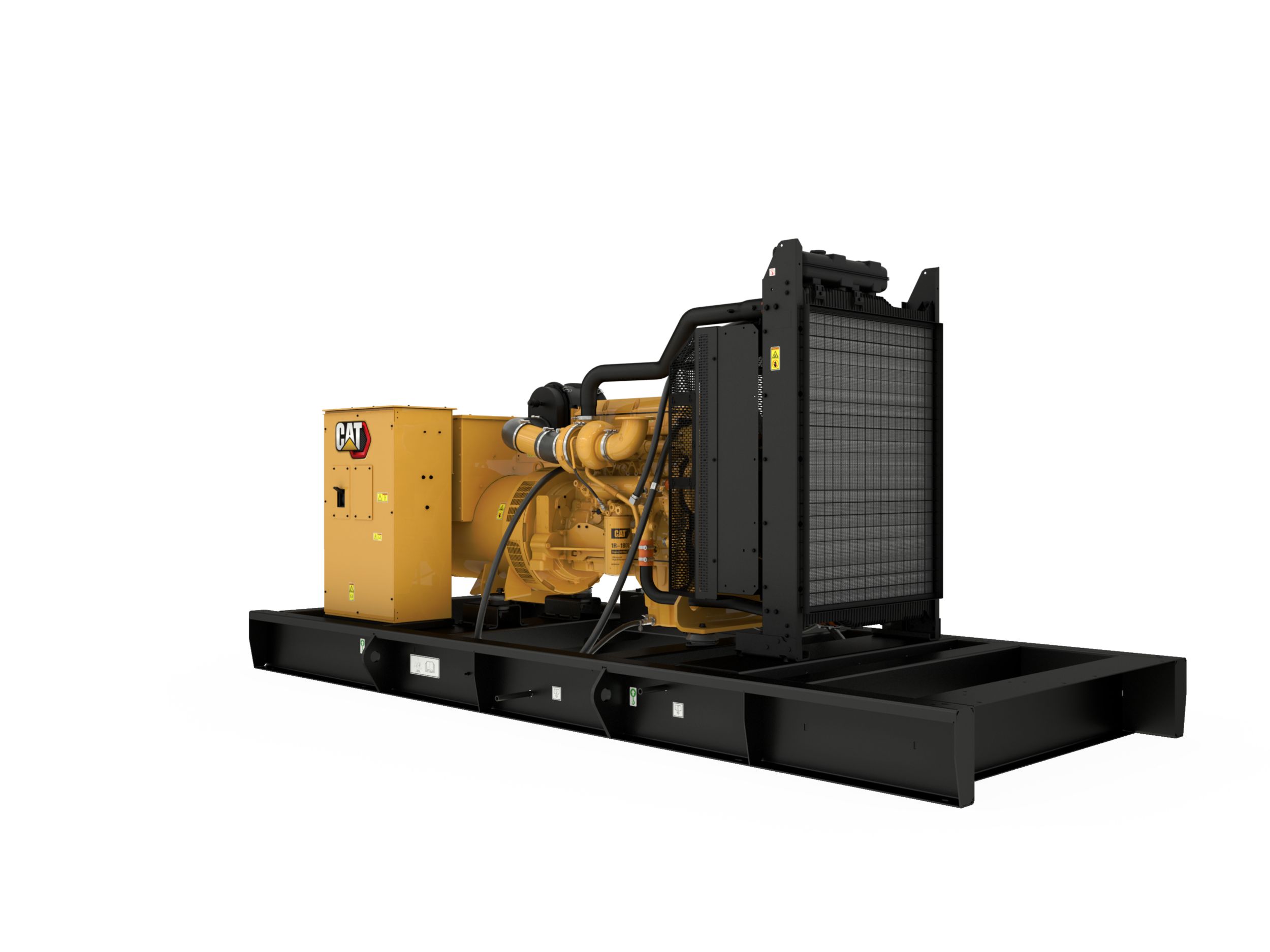

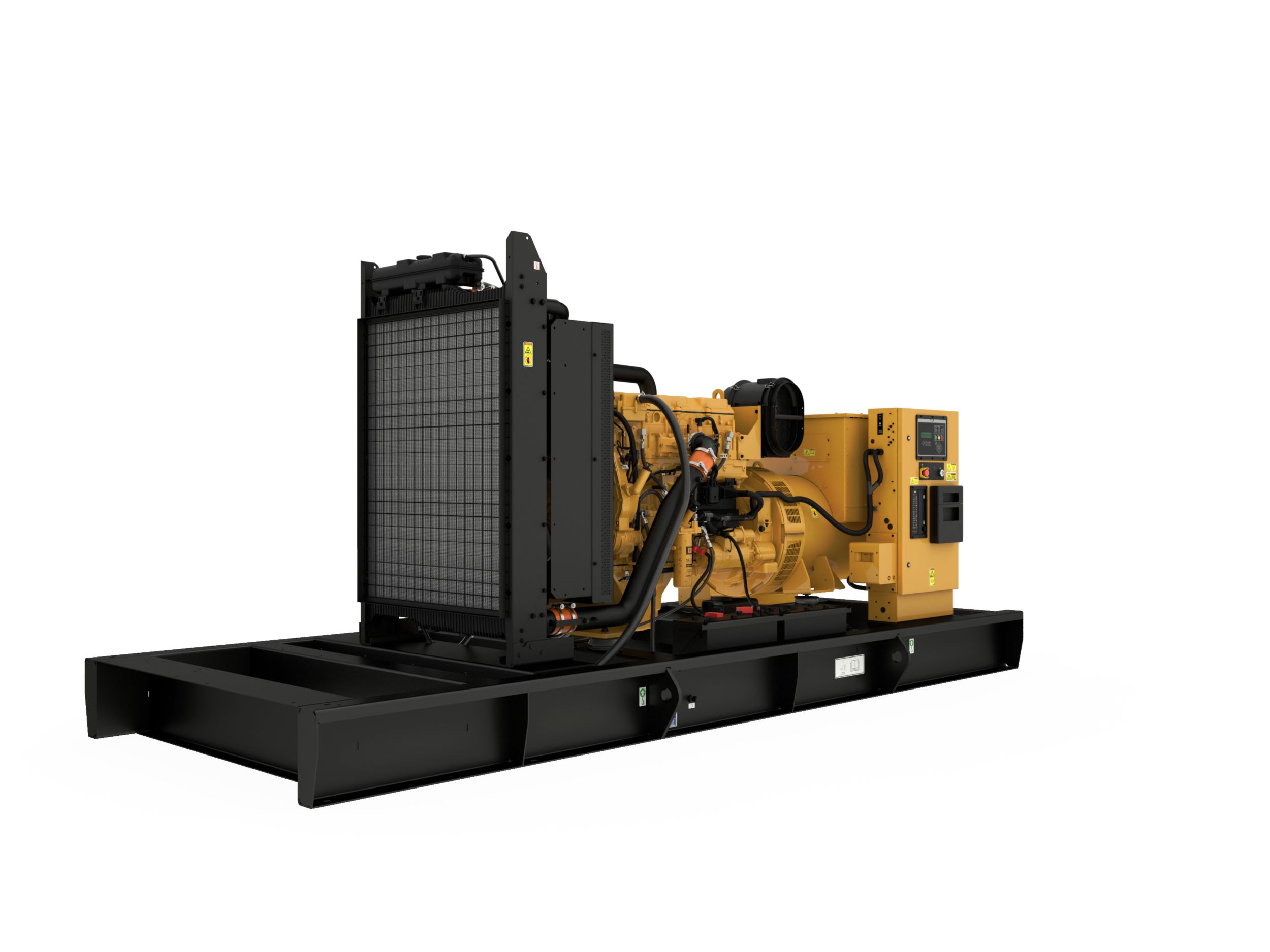

C13 Generator Set

Product Description

The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 350 to 450 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 percent rated load in one step. Our C13 generator sets range from low fuel consumption systems EU Stage IIIA Non-road Emission Standards. We offer a wide range of EMCP 4 control panel options, with a simple screen display, consolidating all your management and diagnostics tools. The optional EMCP 4.4 provides multi generator set paralleling capability, allowing you to use multiple generator sets for increased power output and improved reliability. It's not just quality that matters but customization, choose from a broad range of accessories and bolt-on system expansion attachments. Discover our flexible upgradeable packaging options to work with your spatial restrictions and environmental conditions. Our C13 generator sets are developed for such prerequisites, so that you can meet your specific power needs.

Specifications
Us
Metric
Generator Set Specifications
Height - Maximum
84 in
2133 mm
Length - Maximum
186.7 in
4743 mm
Width - Maximum
79.3 in
2014 mm
Minimum Rating
350 kVA
Maximum Rating
450 kVA
Voltage
380 to 415 Volts
Frequency
50 Hz
Speed
1500 RPM
Generator Set Configurations
Emissions/Fuel Strategy
Low Fuel Consumption, EU Stage IIIA Nonroad Emission Standards
Engine Specifications
Engine Model
C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Compression Ratio
16.3:1
Aspiration
Air to Air Aftercooled
Governor Type
Adem™A4
Fuel System
MEUI
Bore
5.12 in
130 mm
Displacement
762.8 in³
12.5 l
Stroke
6.18 in
157 mm
Standard/Optional

Standard Equipment

Air Inlet System
Control Panel
Cooling System
Exhaust System
Fuel System
Generator and Attachments
Governing System
Lube System
Mounting System
Starting / Charging System
General

Optional Equipment

European Certificates
Air Inlet System
Circuit Breakers
Control Panels
Cooling System
Enclosures
Exhaust System
Fuel System
Generator and Attachments
Lube System
Mounting System
starting / Charging System
