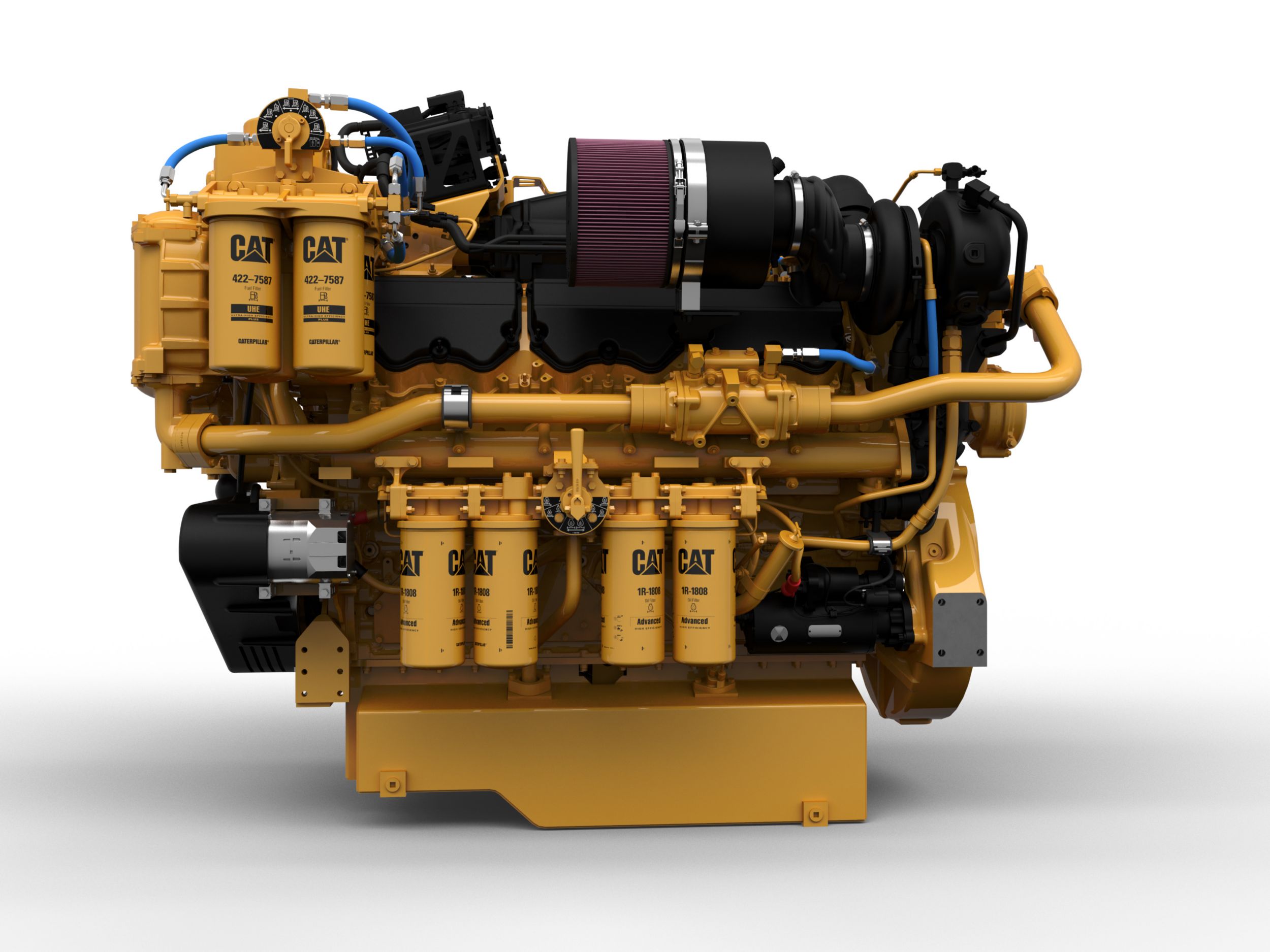

Cat C32 Auxiliary / Diesel Electric Propulsion Engine (IMO III)

Product Description

C32 auxiliary/generator set engines incorporate a separate circuit aftercooling system (SCAC) for all configurations. The primary advantage of the SCAC systsem is reduced aftercooler corrosion since no sea water circulates through the aftercooler. Many other improvements on these engines also contribute to minimizing owning and operating costs. The IMO II, IMO III, EPA T4, EU Stage V and China-II compliant ratings are available with heat exchanger or keel cooled options. Emission options may vary for each rating. Please consult your local dealer for more information.

Specifications
Us
Metric
Power Rating
Power Range
590 - 994 bkW
Generator Set Specifications
Frequency
50 / 60
Engine Specifications
Emissions
IMO II, IMO III U.S. EPA T4, EU Stage V, China II
Power Rating
Minimum Rating
1047 BHP
781 bkW
Maximum Rating
1332 BHP
994 bkW
Engine Specifications
Aspiration
Turbocharged - Aftercooled
Displacement
1959 in³
32.1 l
Stroke
6.38 in
162 mm
Rated Engine Speed
1500 / 1800 rpm
Rotation
Counterclockwise
Bore
5.71 in
145 mm
Configuration
V 12, 4-stroke-cycle diesel
Dimensions & Weights
Maximum Engine Dry Weight
7160 lb
3248 kg
Minimum Height
59.3 in
1507 mm
Minimum Engine Dry Weight
6950 lb
3152 kg
Minimum Width
57.1 in
1451 mm
Maximum Length
89.8 in
2280 mm
Minimum Length
83.9 in
2130 mm
Maximum Width
57.3 in
1455 mm
Maximum Height
63.5 in
1613 mm
Clean Emissions Module (CEM) - Dimensions
6 Brick Z-Flow - Weight
1246 lb
565 kg
6 Brick U-Flow - Width
56.9 in
1445 mm
6 Brick U-Flow - Length
85 in
2159 mm
6 Brick U-Flow - Height
23.5 in
597 mm
Engine Specifications
Cooling
Heat exchanger or keel cooled
Flywheel Housing
SAE No. 0 with SAE No. 18 flywheel (136 teeth)
Clean Emissions Module (CEM) - Dimensions
Dosing Cabinet - Width
18.8 in
477 mm
Engine Specifications
Governor
Electronic (A5 ECM)
Clean Emissions Module (CEM) - Dimensions
6 Brick Z-Flow - Height
23.5 in
597 mm
Dosing Cabinet - Weight
209 lb
95 kg
6 Brick Z-Flow - Length
147.7 in
3751 mm
6 Brick U-Flow - Weight
1235 lb
560 kg
Dosing Cabinet - Length
37.4 in
949 mm
Engine Specifications
Oil Change Interval
750 hours - deep pan
Clean Emissions Module (CEM) - Dimensions
Dosing Cabinet - Height
22.8 in
579 mm
6 Brick Z-Flow - Width
43.5 in
1106 mm
Engine Specifications
Refill Capacity
Lube Oil System w/ oil filter change: 146 L (38.5 gal) - deep pan
Standard/Optional

Standard Equipment

AIR INLET SYSTEM
CONTROL SYSTEM
COOLING SYSTEM
FUEL SYSTEM
LUBE SYSTEM
MOUNTING SYSTEM
GENERAL

Optional Equipment

ALARM AND PROTECTION
EXHAUST SYSTEM
CHARGING SYSTEM
FUEL SYSTEM
LUBE SYSTEM
POWER TAKE-OFFS
STARTING SYSTEM
