299D3 Compact Track Loader

360 View Video

Product Description

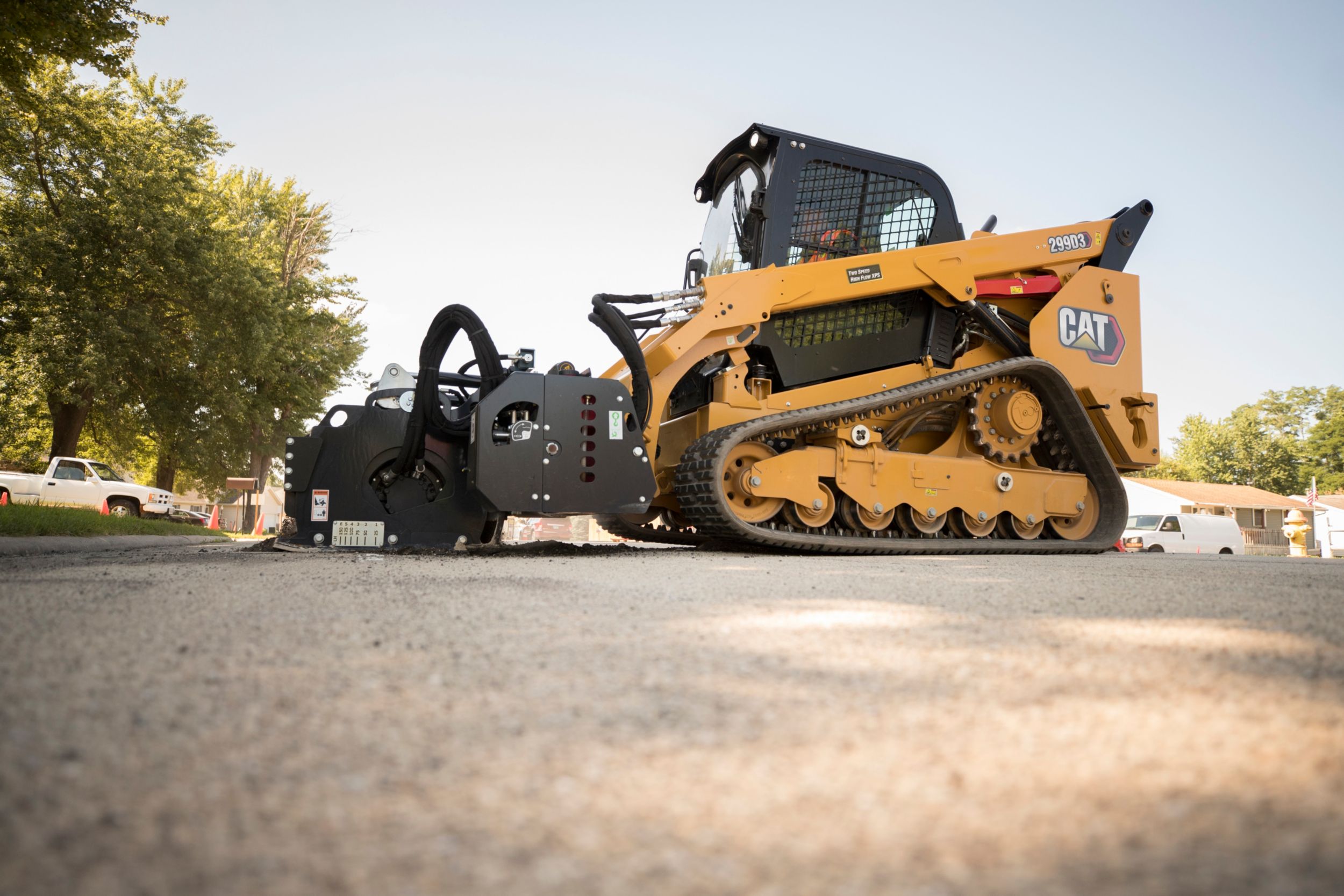

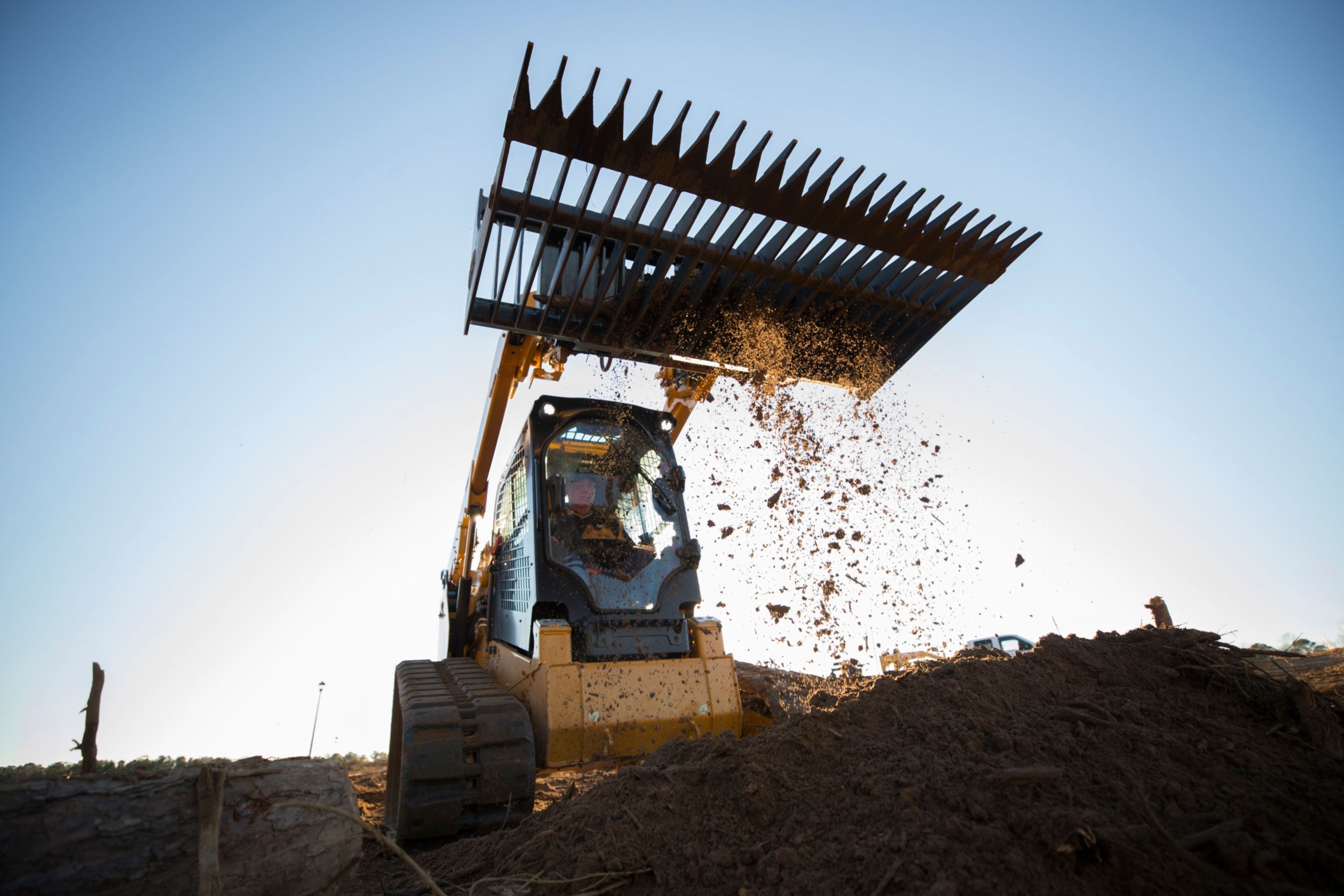

The Cat® 299D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Specifications
Us
Metric
Engine
Gross Power - SAE J1995
98 HP
73 kW
Operating Specifications
Rated Operating Capacities - 35% Tipping Load
3480 lb
1580 kg
Weights
Operating Weight
11464 lb
5200 kg
Dimensions
Length - Track on Ground
69.6 in
1767 mm
Overall Length - Track
89.4 in
2270 mm
Height - Top of Cab
83.6 in
2125 mm
Ground Clearance
9.6 in
245 mm
Departure Angle
33°
Maximum Dump Angle
54°
Vehicle Width (450 mm/17.7 in tracks)
78 in
1981 mm
Turning Radius from Center - Coupler
58.1 in
1476 mm
Rack Back Angle - Maximum Height
81°
Reach - Maximum Lift/Dump
33.6 in
852 mm
Vehicle Width (400 mm/15.7 in tracks)
76 in
1931 mm
Bucket Pin Reach - Maximum Lift
19.4 in
493 mm
Bucket Pin Height - Carry Position
7.1 in
180 mm
Turning Radius from Center - Bucket (racked)
91.1 in
2314 mm
Maximum Reach - With Arms Parallel to Ground
51.9 in
1319 mm
Length - Without Bucket
125.5 in
3189 mm
Length - With Bucket on Ground
154.7 in
3931 mm
Clearance at Maximum Lift and Dump
94.5 in
2399 mm
Bucket Pin Height - Maximum Lift
126.3 in
3208 mm
Maximum Overall Height
158.7 in
4032 mm
Roll Back Angle
25°
Turning Radius from Center - Machine Rear
74 in
1881 mm
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Hydraulic System
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
4061 psi
28000 kPa
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3335 psi
23000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
44 HP
33 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow
23 gal/min
86 l/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
32 gal/min
121 l/min
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
76 HP
57 kW
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
Power Train
Travel Speed - Forward or Reverse - Two Speed
8.4 mile/h
13.5 km/h
Travel Speed - Forward or Reverse - One Speed
5.2 mile/h
8.4 km/h
Engine
Net Power - SAE 1349
95 HP
71 kW
Displacement
232 in³
3.8 l
Bore
3.9 in
100 mm
Stroke
4.7 in
120 mm
Service Refill Capacities
Cooling System
4.1 Gal
16 l
Engine Crankcase
3.5 gal (US)
13 l
Fuel Tank
31.7 gal (US)
120 l
Hydraulic System
14.5 gal (US)
55 l
Hydraulic Tank
10.3 gal (US)
39 l
Engine
Net Power
95 HP
71 kW
Net Power - ISO 9249
95 HP
71 kW
Service Refill Capacities
Diesel Exhaust Fluid (DEF) Tank
5 gal (US)
19 l
Engine
Engine Model
Cat C3.8 DIT (turbo)
Weights
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Operating Specifications
Tipping Load
9945 lb
4520 kg
Breakout Force - Tilt Cylinder
7270 lb
3298 kg
Breakout Force - Lift Cylinder
6162 lb
2795 kg
Rated Operating Capacity with Optional Counterweight
5240 lb
2380 kg
Ground Contact Area - With 400 mm/15.7 in Track
2184 in²
1.41 m²
Ground Pressure - With 400 mm/15.7 in Track
5.3 psi
36.4 kPa
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, enclosed cab with glass door, side windows, heater, mechanical suspension seat, advanced display, 850 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Rated Operating Capacities - 50% Tipping Load
4970 lb
2255 kg
Ground Contact Area - With 450 mm/17.7 in Track
2463 in²
1.59 m²
Ground Pressure - With 450 mm/17.7 in Track
4.7 psi
32.1 kPa
Noise Level
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Inside Cab*
83 dB(A)
83 dB(A)
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Outside Cab**
104 dB(A)
104 dB(A)
Engine
Peak Torque - 1,500 rpm - SAE J1995
246 ft·lbf
334 N·m
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Standard/Optional

Standard Equipment

ELECTRICAL
OPERATOR ENVIRONMENT
POWER TRAIN
OTHER
MANDATORY EQUIPMENT

Optional Equipment

OPTIONAL EQUIPMENT
