AP555

360 View

Product Description

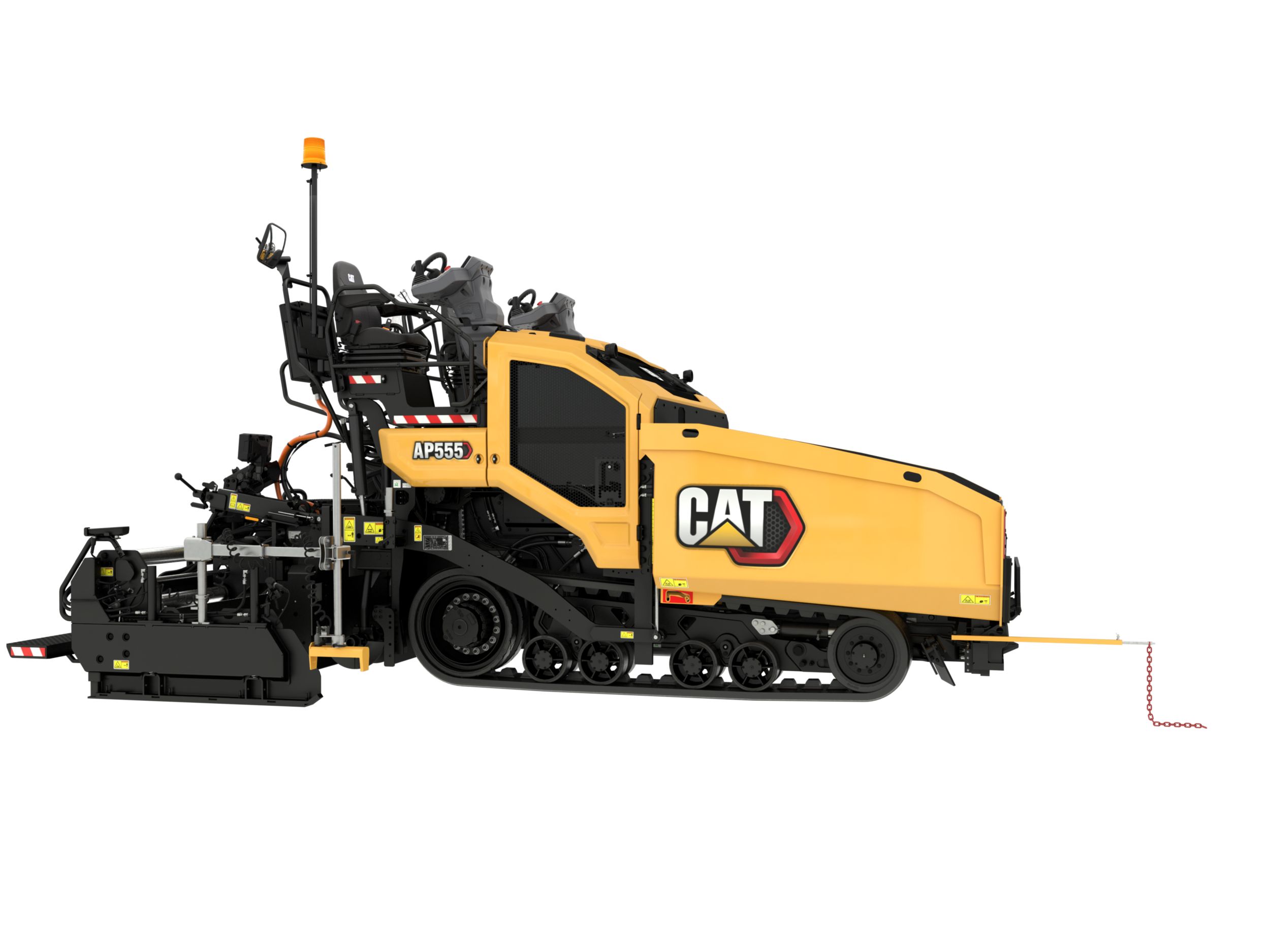

The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.

Specifications
Us
Metric
Dimensions
Paving Range with SE47 FM
2.4 m - 6.1 m (8' - 20')
Engine
Engine Power (1)
148 HP
110 kW
Engine Model (1)
Cat C4.4
Operating Specifications
Maximum Paving Speed
200 ft/min
61 m/min
Maximum Travel Speed
7 mile/h
11 km/h
Weights
Operating weight with SE47 FM
33689 lb
15281 kg
Dimensions
Paving Range with SE47 V
2.4 m - 6.2 m (8' - 20' 6")
Operating Specifications
Maximum Throughput Capacity
1100 ton(US)/h
1000 tonnes/hr
Weights
Operating weight with SE47 V
33448 lb
15172 kg
Shipping Weight - Paver Only
26993 lb
12244 kg
Dimensions
Truck Entry Height
22 in
567 mm
Operating Length
19.25 ft
5.9 m
Operating Width
10.75 ft
3.3 m
Overall Height
10.75 ft
3.2 m
Transport Length
18.5 ft
5.6 m
Transport Width
8.5 ft
2.5 m
Transport Height
825 ft
2.5 m
Service Refill Capacities
Fuel Tank
53 gal (US)
200 l
DEF Tank
5 gal (US)
19 l
Cooling System - Total
6.3 gal (US)
24 l
Hydraulic Oil Tank
32 gal (US)
121 l
Washdown Spray Tank
8.5 gal (US)
32 l
Standard/Optional

Standard Equipment

Operating Environment
Technology
Powertrain
Electrical System
Material Delivery
Service and Maintenance
Safety

Optional Equipment

Operating Environment
Technology
Powertrain
Material Delivery
Safety
