AP500

360 View

Product Description

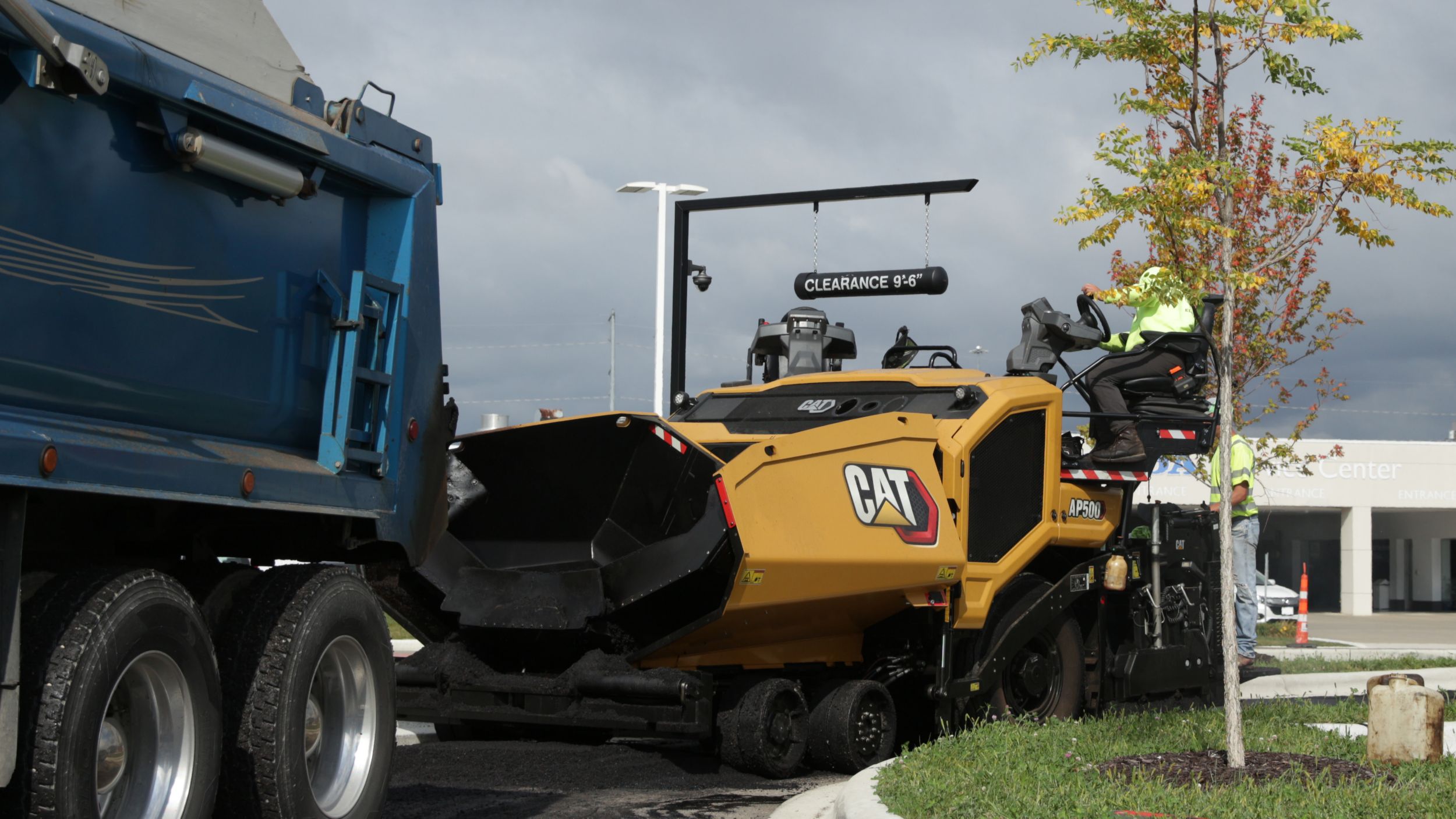

The AP500 asphalt paver and SE47 Series screeds are designed for urban streets, parking lots, rural roads and many other small to intermediate-type applications. This paver and screed combination provides high throughput capability as-well-as application versatility, easy set-up, and a wide paving range.

Specifications
Us
Metric
Dimensions
Paving Range with SE47 FM
2.4 m - 5.9 m (8' - 19' 6")
Engine
Gross Power
148 HP
110 kW
Engine Power (1)
148 HP
110 kW
Engine Model
Cat C4.4
Engine Model (1)
Cat C4.4
Operating Specifications
Maximum Paving Speed
200 ft/min
61 m/min
Maximum Travel Speed
10 mile/h
16 km/h
Weights
Operating weight with SE47 FM
32012 lb
14518 kg
Dimensions
Paving Range with SE47 V
2.4 m - 6.1 m (8' - 20')
Operating Specifications
Maximum Throughput Capacity
1100 ton(US)/h
1000 tonnes/hr
Weights
Operating weight with SE47 V
31772 lb
14409 kg
Shipping Weight - Paver Only
25311 lb
11481 kg
Dimensions
Truck Entry Height
21 in
537 mm
Operating Length
19.25 ft
5.8 m
Operating Width
10.75 ft
3.3 m
Overall Height
11 ft
3.2 m
Transport Length
18.5 ft
5.6 m
Transport Width
8.5 ft
2.5 m
Transport Height
8.6 ft
2.5 m
Service Refill Capacities
Fuel Tank
53 gal (US)
200 l
DEF Tank
5 gal (US)
19 l
Cooling System - Total
6.3 gal (US)
24 l
Hydraulic Oil Tank
32 gal (US)
121 l
Washdown Spray Tank
8.5 gal (US)
32 l
Standard/Optional

Standard Equipment

Operating Environment
Technology
Powertrain
Electrical System
Material Delivery
Service and Maintenance
Safety

Optional Equipment

Operating Environment
Technology
Powertrain
Material Delivery
Safety
