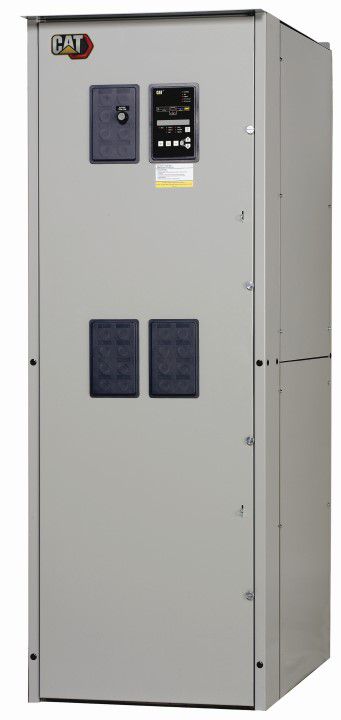

ATC Power Breaker Bypass Isolation Open/Closed Transition Automatic Transfer Switch

Product Description

Cat transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. A Bypass Isolation Automatic Transfer Switch (ATS) provides fully functioning transfer in applications where emergency power to critical loads must be maintained at all times with no interruption. This type of design allows for inspection, maintenance or replacement of the power switching mechanisms with no interruption in electrical service. Breaker based Bypass isolation ATS are available from 200A to 5,000A.

Specifications
Us
Metric
Technical Summary
Rating Range
200-5000A
Transfer Type
Bypass isolation, Closed transition
Switch Type
Power Breaker
Ratings
Control Power
200-5000A, 2-, 3-, 4-pole
100% rated Short
System Voltage Application
120-600 Vac 50/60 Hz
Time Withstand
85,000 for 30 cycles
Withstand
100 kAIC at 600V, 3 cycles
Applicable Testing
CSA C22.2 No. 178 certified
UL 1008 listed up to 3200A
4000A, and 5000A UL 891 listed
Standard/Optional

Standard Equipment

Controls and Wiring
Enclosure

Optional Equipment

Available Options
Optional Delayed Transition includes:
