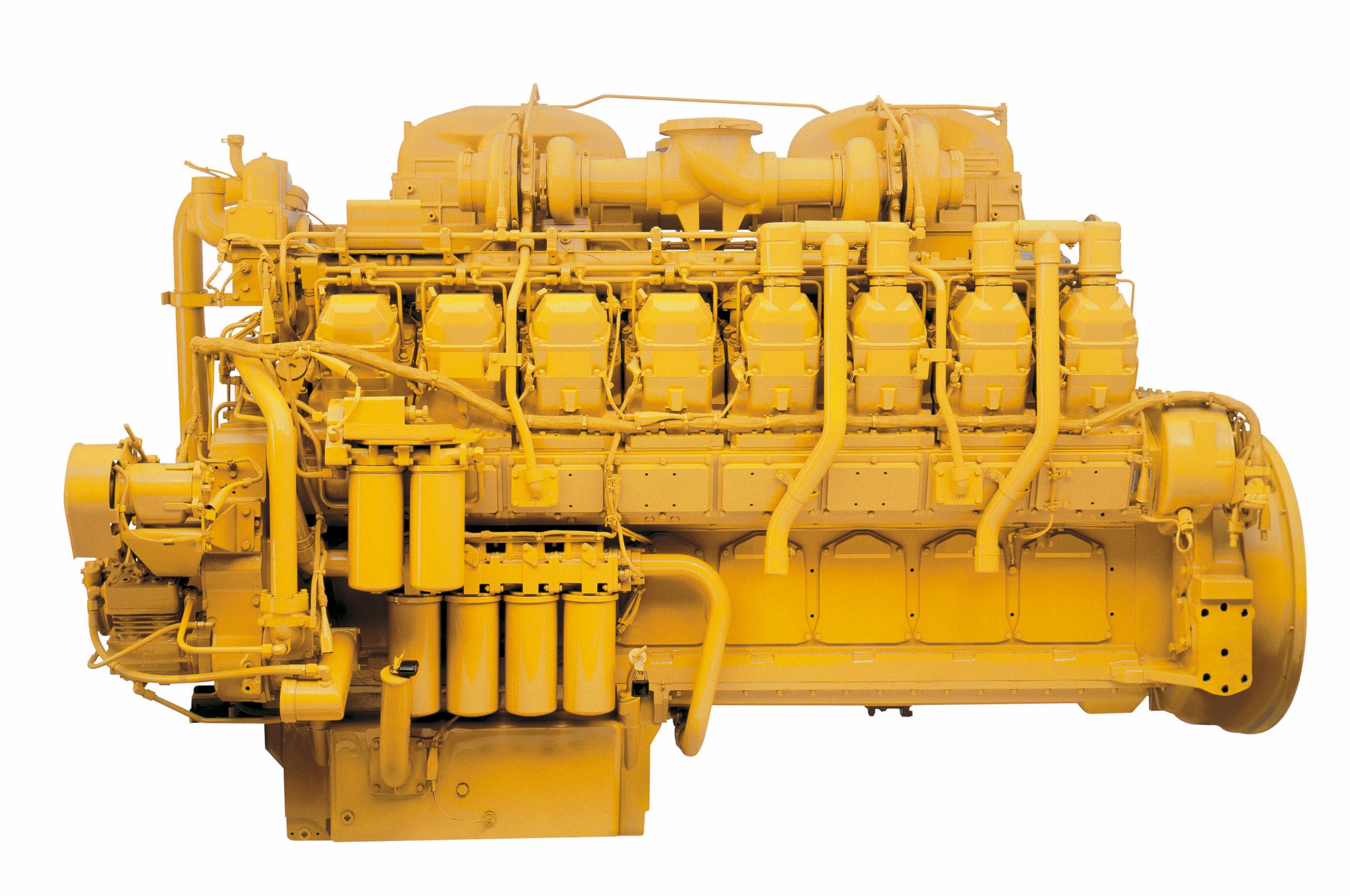

3516 Land Mechanical Drilling Engine

Product Description

Cat 3516 engines set the standard in the drilling industry. For many years the 3500 has been the preferred choice by drillers due to their high performance, durability, and reliability in the oilfield.The ideal application for the 3512 engine is mechanical drive for land drilling rigs.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.3516 engines, with ratings: 1230 bkW (1649 bhp) @ 1200 rpm. Not emissions certified, available for non-regulated areas.

Specifications
Us
Metric
Engine Specifications
Maximum Rating
1649 BHP
1230 bkW
Emissions
Non-certified
Displacement
4210 in³
69 l
Minimum Rating
1649 BHP
1230 bkW
Bore
6.69 in
170 mm
Stroke
7.48 in
190 mm
Rated Speed
1200 r/min
1200 r/min
Aspiration
Turbocharged-Aftercooled
Governor and Protection
W3161
Engine Weight - Net Dry
19090 lb
8659 kg
Oil Change Interval
500
Rotation from Flywheel End
Counterclockwise
Flywheel and Flywheel Housing
SAE No. 00
Flywheel Teeth
183
Capacity for Liquids
Minimum Cooling System - Engine Only
61.5 gal (US)
233 l
Dimensions
Length
128 in
3251 mm
Width
67 in
1701 mm
Height
78.9 in
2004 mm
Standard/Optional

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheel and Housing
Fuel System
Instrumentation
Lubrication System
Mounting System
Power take-offs
Protection System
Starting System
General

Optional Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Fuel System
Generator and Attachments
Instrumentation
Lubrication System
Power Take-off
Protection System
Starting System
General
