297D2 XHP Multi Terrain Loader

Product Description

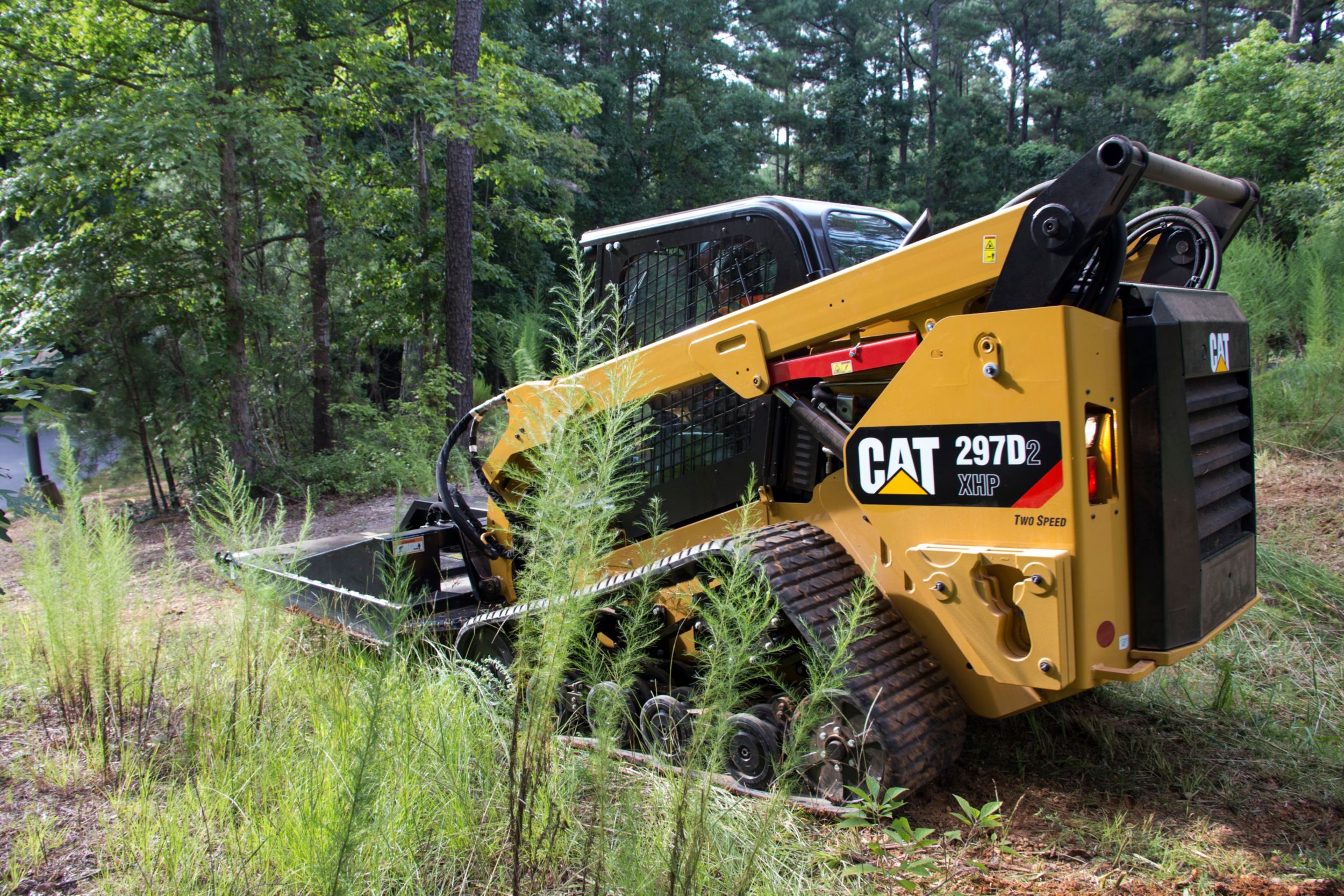

The Cat® 297D2 XHP Multi Terrain Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, speed and ride quality with very low ground pressure and minimal ground disturbance across a wide range of underfoot conditions.

Specifications
Us
Metric
Engine
Engine Model
Cat C3.8 DIT (turbo)
Net Power
106 HP
79 kW
Gross Power - SAE J1995
110 HP
82 kW
Net Power - SAE 1349
106 HP
79 kW
Displacement
232 in³
3.8 l
Bore
3.9 in
100 mm
Stroke
4.7 in
120 mm
Peak Torque - 1,500 rpm - SAE J1995
276 ft·lbf
374 N·m
Net Power - ISO 9249
107 HP
80 kW
Weights
Operating Weight
10918 lb
4952 kg
Operating Specifications
Rated Operating Capacities - 50% Tipping Load
4800 lb
2177 kg
Tipping Load
9600 lb
4354 kg
Breakout Force - Tilt Cylinder
7468 lb
3387 kg
Breakout Force - Lift Cylinder
6072 lb
2754 kg
Rated Operating Capacity with Optional Counterweight
5060 lb
2295 kg
Rated Operating Capacities - 35% Tipping Load
3360 lb
1524 kg
Dimensions
Length - Track on Ground
71.1 in
1807 mm
Overall Length - Track
90 in
2286 mm
Height - Top of Cab
83.2 in
2114 mm
Vehicle Width
78.1 in
1984 mm
Ground Clearance
8.8 in
223 mm
Departure Angle
30°
Maximum Dump Angle
52°
Length - Without Bucket
126 in
3201 mm
Bucket Pin Height - Carry Position
7.9 in
200 mm
Turning Radius from Center - Coupler
59.2 in
1504 mm
Turning Radius from Center - Machine Rear
73.4 in
1864 mm
Bucket Pin Height - Maximum Lift
127.6 in
3241 mm
Rack Back Angle - Maximum Height
83°
Turning Radius from Center - Bucket (racked)
91.8 in
2333 mm
Length - With Bucket on Ground
155.2 in
3942 mm
Clearance at Maximum Lift and Dump
96.3 in
2445 mm
Maximum Overall Height
160.5 in
4076 mm
Reach - Maximum Lift/Dump
30.5 in
776 mm
Bucket Pin Reach - Maximum Lift
15.2 in
387 mm
Maximum Reach - With Arms Parallel to Ground
49.6 in
1260 mm
Hydraulic System
Hydraulic Flow - XHP - Maximum Loader Hydraulic Pressure
4061 psi
28000 kPa
Note
*When equipped with Cat 400 Series work tools.
Hydraulic Flow - Standard - Loader Hydraulic Pressure
3335 psi
23000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
44 HP
33 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow
23 gal/min
86 l/min
Hydraulic Flow - XHP - Hydraulic Power (Calculated)
94 HP
70 kW
Hydraulic Flow - XHP - Maximum Loader Hydraulic Flow*
40 gal/min
150 l/min
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 Level II
Power Train
Travel Speed - Forward or Reverse - One Speed
5.9 mile/h
9.6 km/h
Travel Speed - Forward or Reverse - Two Speed
9.4 mile/h
15.1 km/h
Service Refill Capacities
Cooling System
4.1 gal (US)
16 l
Engine Crankcase
3.5 gal (US)
13 l
Fuel Tank
32.2 gal (US)
122 l
Hydraulic System
14.5 gal (US)
55 l
Hydraulic Tank
10.3 gal (US)
39 l
Operating Specifications
Ground Contact Area
2561 in²
1.65 m²
Ground Pressure
4.3 psi
29.4 kPa
Noise Level
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab*
83 dB(A)
83 dB(A)
Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Service Refill Capacities
Diesel Exhaust Fluid (DEF) Tank
5 gal (US)
19 l
Dimensions
Roll Back Angle
27°
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, MTL undercarriage and manual quick coupler (unless otherwise noted).
Noise Level
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab**
104 dB(A)
104 dB(A)
Weights
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, MTL undercarriage and manual quick coupler (unless otherwise noted).
Operating Specifications
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, MTL undercarriage and manual quick coupler (unless otherwise noted).
Noise Level
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
