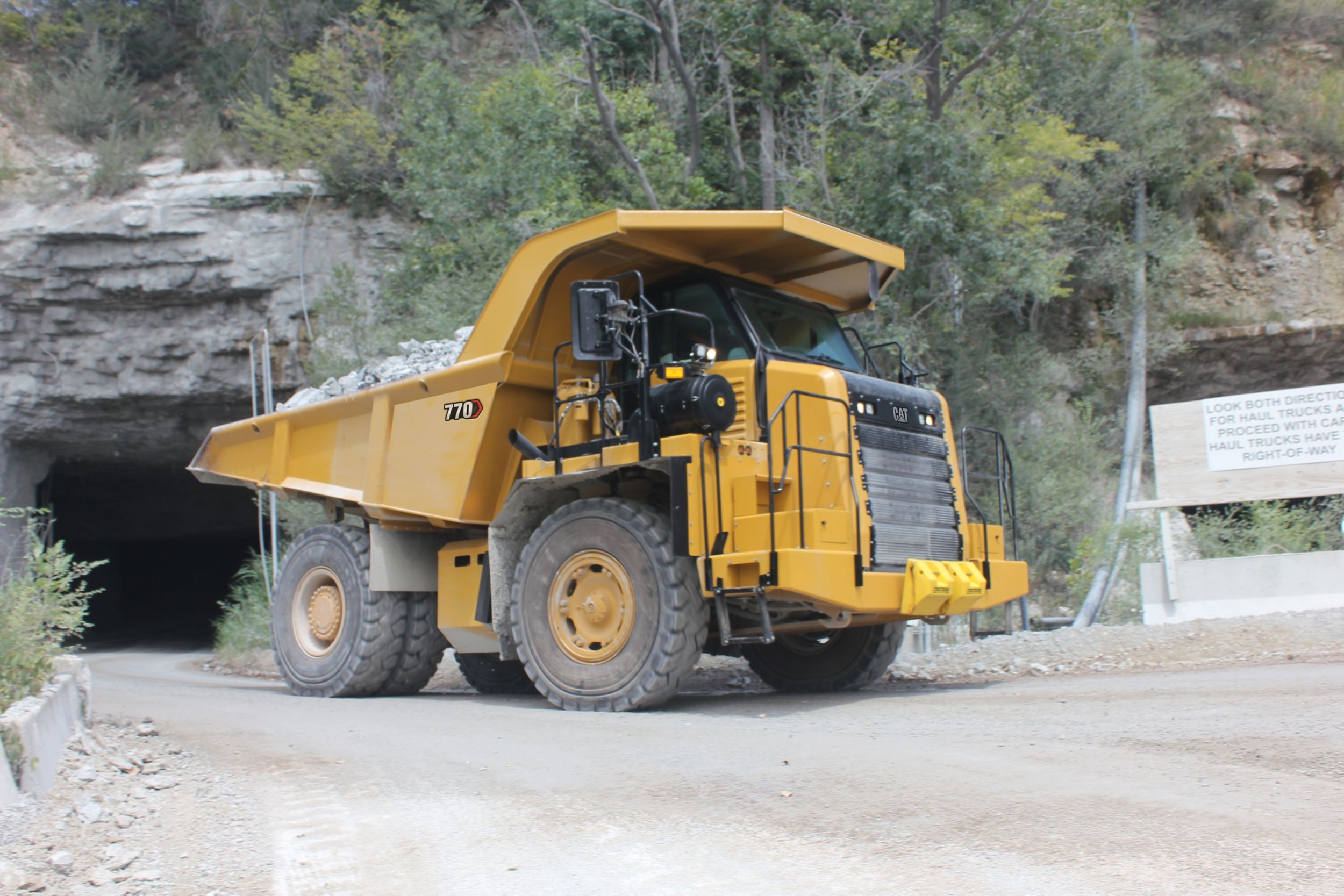

770G Off-Highway Truck

Product Description

In 1963, Caterpillar introduced the 769, a revolutionary off-road truck that was purpose built for the rigors of mining and heavy construction. Fifty years later, our trucks have never been better. We’ve taken the best of our rugged, dependable heritage and combined it with technologies that help our environment, make your operators more productive and dramatically improve the economics of your haul fleet. This 770G has an updated traction control system to keep you moving when the ground conditions aren’t perfect, you’ll see improvements in fuel use through new and flexible fuel saving strategies, and we’re making the operating experience best in class with automotive quality shifting, noise reduction and cab updates. Our heritage and new use of technology are combined in this truck for one purpose - the continued success of your business.

Specifications
Us
Metric
Operating Specifications
Nominal Payload Class (100%)
42.1 tons
38.2 tonnes
Top Speed - Loaded
45.8 mph
73.7 km/h
Body Capacity (SAE 2:1)
32.9 yd3
25.2 m3
Maximum Payload Class (110%)
46.3 tons
42.0 tonnes
Not to Exceed Payload (120%)
50.5 tons
50.4 tonnes
Target Payload Capacity
42.1 tons
38.2 tonnes
Engine
Engine Model
Cat® C15 ACERT™
Rated Engine Speed
1700.0 RPM
1700.0 RPM
Gross Power - SAE J1995
515.0 hp
384.0 kW
Net Power - SAE J1349
477.0 hp
356.0 kW
Net Power - 80/1269/EEC
489.0 hp
365.0 kW
Net Power - ISO 9249
477.0 hp
356.0 kW
Number of Cylinders
6
Bore
5.4 in
137.0 mm
Stroke
6.7 in
171.0 mm
Displacement
927.6 in3
15.2 L
Net Power - ISO 14396
508.0 hp
379.0 kW
Net Torque - SAE J1349
1834.0 ft-lb
2486.0 N·m
Weights - Approximate
Target Gross Machine Operating Weight
157000.0 lb
71214.0 kg
Chassis Weight
55948.0 lb
25378.0 kg
Body Weight
17306.0 lb
7850.0 kg
Target Gross Machine Weight
157000.0 lb
71214.0 kg
Capacity - Dual Slope - 100% Fill Factor
Struck
23.01 yd3
17.6 m3
Heaped 2:1 (SAE)
32.9 yd3
25.2 m3
Capacity - Flat Floor - 100% Fill Factor
Struck
23.01 yd3
17.6 m3
Heaped 2:1 (SAE)
32.9 yd3
25.2 m3
Weight Distributions - Approximate
Front Axle - Empty
49.0 %
49.0 %
Front Axle - Loaded
34.0 %
34.0 %
Rear Axle - Empty
51.0 %
51.0 %
Rear Axle - Loaded
66.0 %
66.0 %
Transmission
Forward 1
7.4 mph
11.9 km/h
Forward 2
10.1 mph
16.3 km/h
Forward 3
13.8 mph
22.2 km/h
Forward 4
18.5 mph
29.8 km/h
Forward 5
25.1 mph
40.4 km/h
Forward 6
33.8 mph
54.4 km/h
Forward 7
45.8 mph
73.7 km/h
Reverse
8.8 mph
14.2 km/h
Final Drives
Differential Ratio
1.92:1
Planetary Ratio
4.80:1
Total Reduction Ratio
9.26:1
Brakes
Brake Surface - Front
216.0 in2
1395.0 cm2
Brake Surface - Rear
6235.0 in2
40225.0 cm2
Brake Standards
ISO 3450:1996
Service Refill Capacities
Cooling System
33.0 gal
125.0 L
Differentials and Final Drives
47.0 gal
180.0 L
Steering Tank
14.5 gal
55.0 L
Steering System (Includes Tank)
23.0 gal
87.0 L
Brake Hoist System
60.0 gal
227.0 L
Brake/Hoist Hydraulic Tank
38.0 gal
145.0 L
Crankcase
17.0 gal
64.0 L
DEF Tanks
6.0 gal
21.0 L
Fuel Tank
140.0 gal
530.0 L
Torque Converter/Transmission System
17.0 gal
64.0 L
Body Hoists
Pump Flow - High Idle
118.0 gal/min
448.0 L/min
Relief Valve Setting - Raise
2750.0 psi
18950.0 kPa
Relief Valve Setting - Lower
500.0 psi
3450.0 kPa
Body Raise Time - High Idle
7.5 Seconds
7.5 Seconds
Body Lower Time - Float
10.0 Seconds
10.0 Seconds
Body Power Down - High Idle
10.0 Seconds
10.0 Seconds
Suspension
Rear Axle Oscillation
8.9 Degrees
8.9 Degrees
Empty Loaded Cylinder Stroke Front
9.2 in
234.0 mm
Empty Loaded Cylinder Stroke Rear
5.9 in
149.0 mm
Sound
Sound Standards
Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment.
Sound Standards
Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 116 dB(A).
Sound Standards
Operator Equivalent Sound Pressure Level is 79 dB(A) & 74 dB(A) with EU sound suppression applied when ISO 6396:2008 is used.
ROPS
FOPS Standards
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria.
ROPS Standards
ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
Dimensions
Height to Top of ROPS
12.7 ft
3857.0 mm
Inside Body Depth - Maximum
4.6 ft
1404.0 mm
Overall Body Length
26.8 ft
8199.0 mm
Inside Body Length
18.5 ft
5635.0 mm
Overall Length
28.9 ft
8796.0 mm
Wheelbase
13.0 ft
3960.0 mm
Rear Axle to Tail
8.5 ft
2586.0 mm
Ground Clearance
1.6 ft
518.0 mm
Dump Clearance
1.7 ft
506.0 mm
Loading Height - Empty
10.3 ft
3147.0 mm
Overall Height - Body Raised
27.1 ft
8255.0 mm
Operating Width
15.7 ft
4780.0 mm
Centerline Front Tire Width
10.2 ft
3110.0 mm
Engine Guard Clearance
1.8 ft
335.0 mm
Outside Body Width
12.9 ft
3931.0 mm
Inside Body Width
11.9 ft
3627.0 mm
Front Canopy Height
13.5 ft
4114.0 mm
Rear Axle Clearance
1.8 ft
548.0 mm
Centerline Rear Dual Tire Width
8.3 ft
2536.0 mm
Overall Tire Width
12.1 ft
3693.0 mm
Steering
Turning Diameter - Front
57.7 ft
17.6 m
Steering Standards
ISO 5010:2007
Steer Angle
40.5 Degrees
40.5 Degrees
Turning Circle Clearance Diameter
66.6 ft
20.3 m
Tires
Standard Tire
18.00R33 (E4)
Standard/Optional

Standard Equipment

ELECTRICAL
PRODUCT LINK™ COMMUNICATIONS
GUARDS
OPERATOR ENVIRONMENT
POWER TRAIN
SUSPENSION SYSTEMS
OTHER STANDARD EQUIPMENT
ANTIFREEZE

Optional Equipment

Extended Life Brake Discs
Cat Engine Brake
Body heat/diverter box
Four (4) batteries
HID lights
Product Link
Backup alarm
Heated mirrors
Fuel heater
Ether aid
Coolant heater
Auto lube
Rear vision camera (WAVS)
Spare rims
Wheel chocks
Body sideboards
Traction Control System
