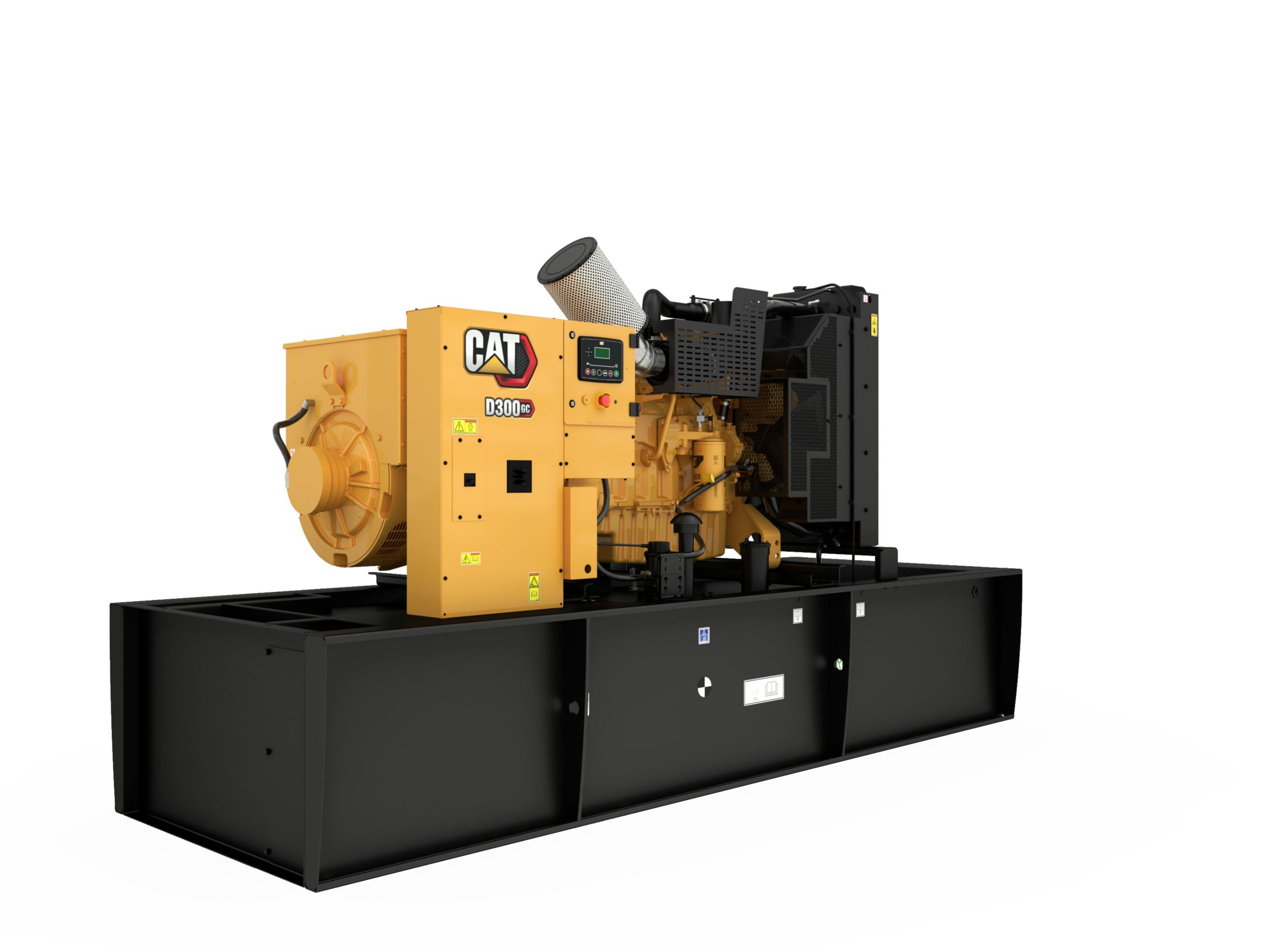

D300 GC (60 Hz) Generator Set

360 View

Product Description

Producing reliable power of 300 ekW at 60 Hz, our D300 GC diesel generator set are designed to ISO 8528-5 transient response requirements. The D300 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.

Specifications
Us
Metric
Generator Set Specifications
Maximum Rating
300 ekW
Minimum Rating
300 ekW
Emissions/Fuel Strategy
EPA Stationary Emergency
Voltage
208 to 600 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby
Engine Specifications
Engine Model
Cat® C9 In-line 6, 4-cycle diesel
Bore
4.4 in
112 mm
Stroke
5.9 in
149 mm
Displacement
538 in³
8.8 l
Compression Ratio
16.3:1
Aspiration
Turbocharged Air-to-Air Aftercooled
Fuel System
HEUI
Governor Type
Adem™A4
Generator Set Dimensions
Length - Maximum
155.5 in
3950 mm
Width - Minimum
56.3 in
1430 mm
Width - Maximum
56.7 in
1440 mm
Height - Minimum
67.2 in
1706 mm
Height - Maximum
86.7 in
2202 mm
Dry Weight - Genset (minimum)
5518.2 lb
2503 kg
Dry Weight - Genset (maximum)
6929.1 lb
3143 kg
Standard/Optional

Standard Equipment

Air Inlet System
Control Panel
Cooling System
Exhaust System
Fuel System
Generator Set
Generators and Generator Attachments
Governing System
Lube System
Mounting System
Protection
Starting/Charging System
General

Optional Equipment

Air Inlet System
Bases, Mounting & Fuel Tanks
Circuit breaker
Control System
Enclosures
Exhaust System
Generator
Starting System
General
