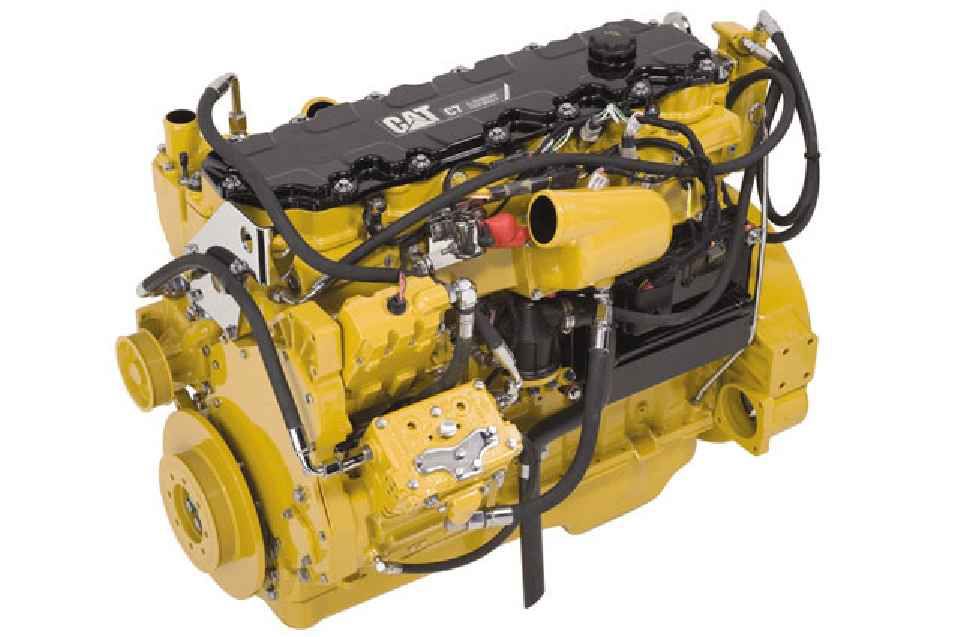

Cat® C7 Industrial Diesel Engine

Product Description

Demanding conditions, applications and environments make Cat® C7 Industrial Diesel Engines the perfect solution for your severe duty equipment. With decades of diesel engine innovation and expertise behind these engines, they deliver the low operating costs and legendary Cat reliability and durability that give you a powerful advantage. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat industrial engine. Industries and applications powered by C7 engines include Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment. The C7 engines, with ratings: 168-224 bkW (225-300 bhp) @ 1800-2200 rpm, meet China Stage II, EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.

Specifications
Us
Metric
Power Rating
Maximum Power
300 HP
224 kW
Rated Speed
1800-2200 rpm
Minimum Power
225 HP
168 kW
Emission Standards
Emissions
China Stage II, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration
Inline 6, 4-Stroke-Cycle Diesel
Bore
4.3 in
110 mm
Stroke
5 in
127 mm
Displacement
442 in³
7.2 l
Compression Ratio
16.2:1
Aspiration
Turbocharged Aftercooled (TA)
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Aftertreatment
-
Engine Dimensions - Approximate
Length
41.5 in
1053 mm
Width
29.8 in
758 mm
Height
40.6 in
1032 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
1296 lb
588 kg
Standard/Optional

Standard Equipment

Air Inlet System
Control System
Cooling System
Exhaust System
Flywheels and Flywheel Housing
Fuel System
Lube System
General
