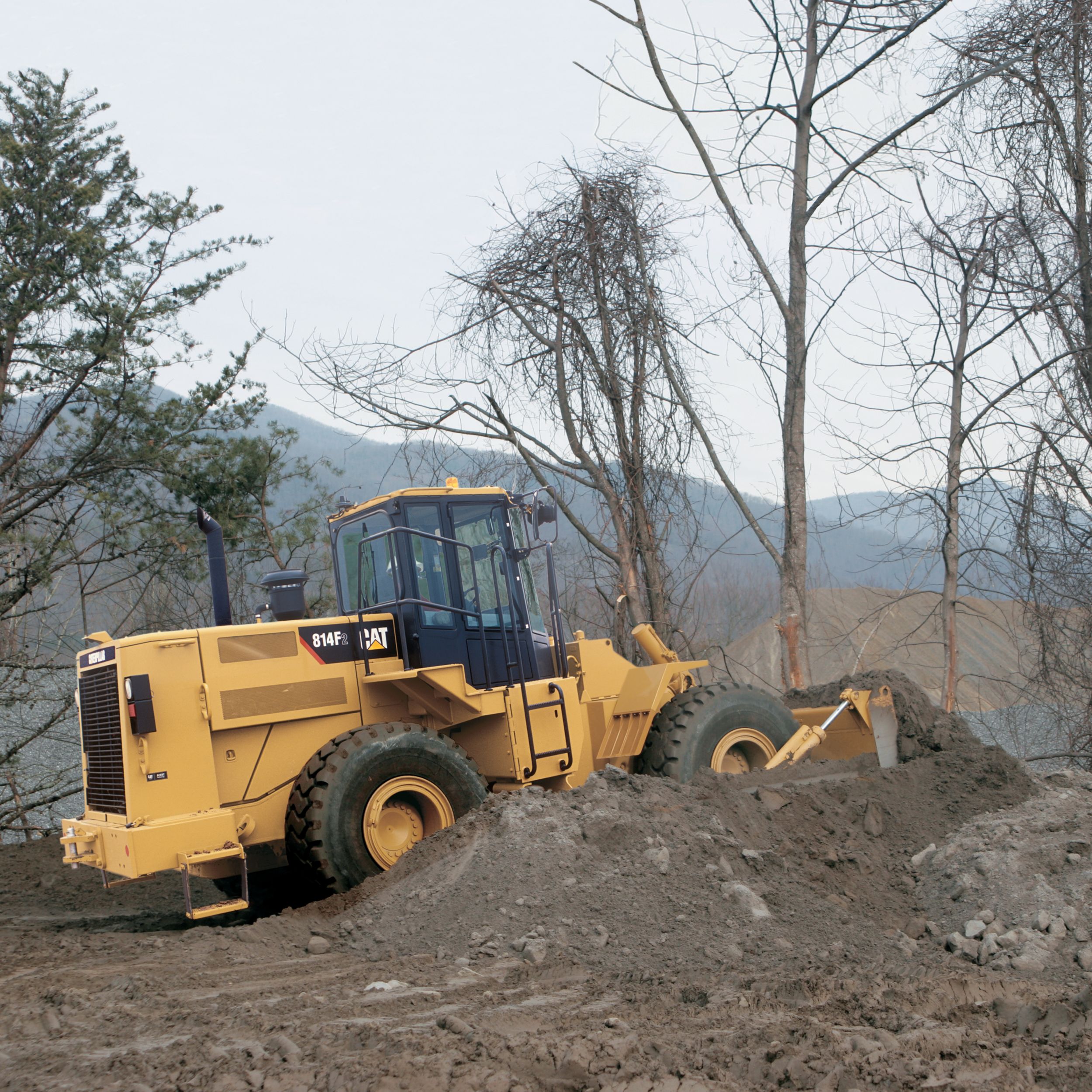

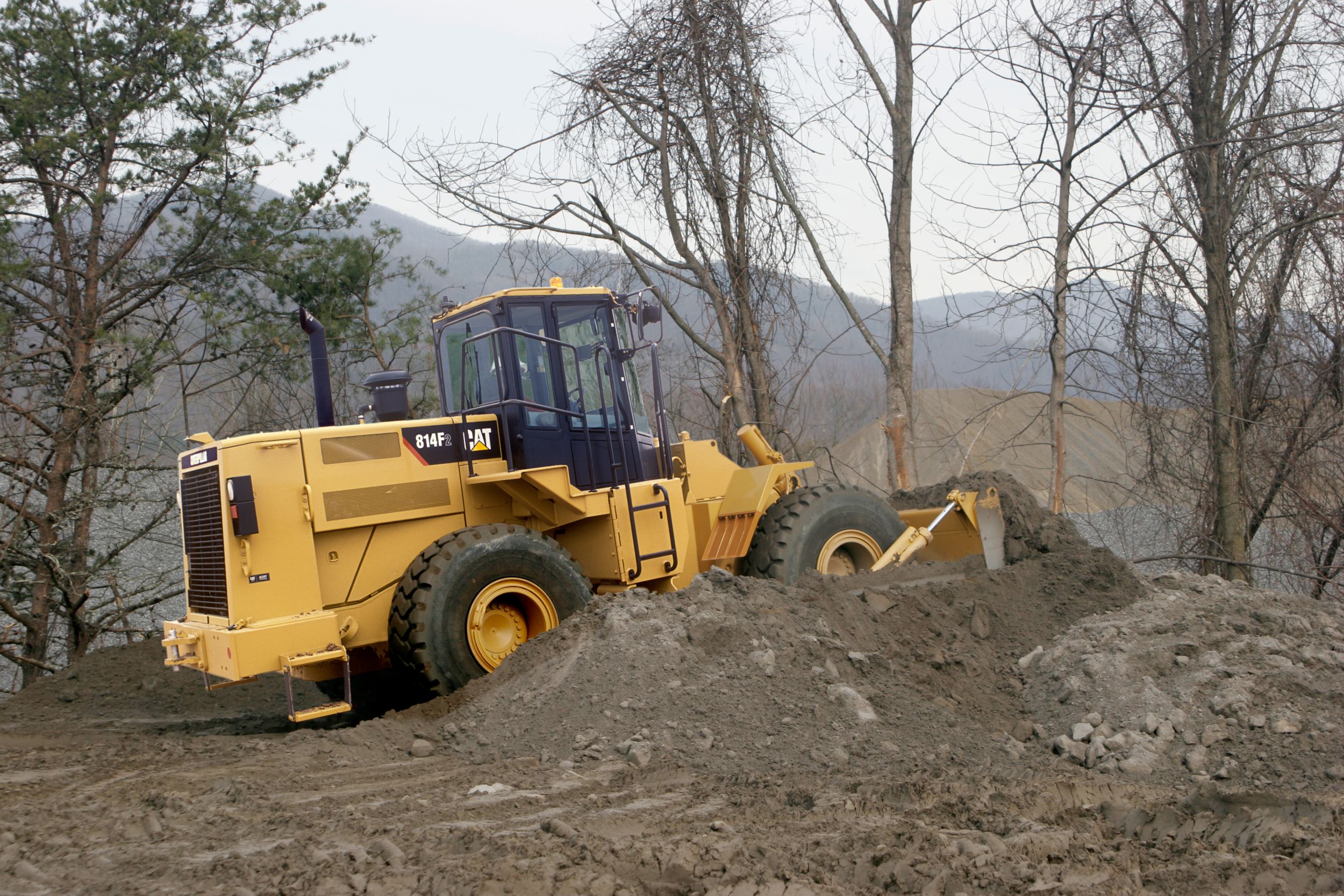

814F Series 2 Wheel Dozer

Product Description

Specifically designed for mobility, maneuverability and good speed in tough applications.

Specifications
Us
Metric
Engine
Engine Model
Cat® C9 ACERT™
Net Power
232.0 hp
173.0 kW
Flywheel Power
232.0 hp
173.0 kW
Gross Power
253.0 hp
189.0 kW
Net Power - EEC 80/1269
235.0 hp
175.0 kW
Net Power - ISO 9249
235.0 hp
175.0 kW
Net Power - SAE J1349 (JAN90)
232.0 hp
173.0 kW
Bore
4.4 in
112.0 mm
Stroke
5.9 in
149.0 mm
Displacement
537.0 in3
8.8 L
Torque Rise
30.0 %
30.0 %
Cylinders
6
Weights
Operating Weight
47877.0 lb
21713.0 kg
Blade Specifications
Blade Capacities
2.66 m3
Straight Blade - Capacity
3.49 yd3
2.66 m3
Moldboard Length
11.8 ft
3596.0 mm
Straight Blade - Overall Width
11.8 ft
3596.0 mm
Straight Blade - Height
3.6 ft
1110.0 mm
Straight Blade - Digging Depth
1.73 ft
528.0 mm
Maximum Lift Above Ground
2.36 ft
718.0 mm
Blade Tip Angle - Total
51.9 Degrees
51.9 Degrees
Blade Tip Angle - Forward
10.0 Degrees
10.0 Degrees
Blade Tip Angle - Back
4.5 Degrees
4.5 Degrees
Blade Tilt Angle - Right
4.5 Degrees
4.5 Degrees
Blade Tilt Angle - Left
8.0 Degrees
8.0 Degrees
Straight Blade - Maximum Tilt
2.6 ft
795.0 mm
Straight Blade - Total Operating Weight
47868.91 lb
21713.0 kg
Operating Specifications
Turning Circle w/Blade
4703.4 ft
1433.6 m
Ground Clearance
14.41 in
366.0 mm
Transmission
Number of Forward Speeds
4
Number of Reverse Speeds
4
Forward 1
3.6 mph
5.7 km/h
Forward 2
6.4 mph
10.2 km/h
Forward 3
11.2 mph
17.9 km/h
Forward 4
19.3 mph
31.0 km/h
Reverse 1
4.1 mph
6.5 km/h
Reverse 2
7.3 mph
11.6 km/h
Reverse 3
12.7 mph
20.4 km/h
Reverse 4
21.8 mph
34.9 km/h
Tires
Standard Tire Size
26.5 R25 XHA MX L3
Tires
L3 rock tread
Hydraulic System
Lift cylinder, bore and stroke
120.62 mm x 913.9 mm 4.74 in x 35.98 in
Steering cylinder, bore and stroke
101.6 mm x 597 mm 3.99 in x 23.5 in
Relief valve setting
2255.0 psi
15500.0 kPa
Brakes
Brakes
Meet OSHA regulations
Axles
Front
Fixed
Rear
Oscillating ±12°
Steering
Steering Angle
±36°
Turning Radius, Outside Corner of Blade
23.5 ft
7168.0 mm
Turning Radius, Inside Corner of Blade
12.2 ft
3727.0 mm
Dimensions
Height to Top of Cab
10.91 ft
3326.0 mm
Height to Top of Exhaust Pipe
10.84 ft
3304.0 mm
Height to Top of Hood
7.79 ft
2373.0 mm
Ground Clearance to Bumper
2.45 ft
748.0 mm
Height to Bottom of Ladder
1.45 ft
441.0 mm
Center Line of Rear Axle to Edge of Bumper
6.14 ft
1871.0 mm
Center Line of Rear Axle to Hitch
5.5 ft
1675.0 mm
Wheelbase
11.0 ft
3350.0 mm
Length with Blade on Ground
22.58 ft
6881.0 mm
Ground Clearance
1.2 ft
366.0 mm
Cab
Cab
Meets SAE and ISO standards
ROPS/FOPS
Standard
Service Refill Capacities
Fuel Tank - standard
117.8 gal
446.0 L
Cooling System
14.5 gal
55.0 L
Crankcase
9.0 gal
34.0 L
Transmission
13.2 gal
50.0 L
Hydraulic Tank
23.2 gal
88.0 L
Differentials and Final Drives - Front
17.1 gal
65.0 L
Differentials and Final Drives - Rear
17.1 gal
65.0 L
Sound Performance
Standards
Meet required standards
Standard/Optional

Standard Equipment

ELECTRICAL
OPERATOR ENVIRONMENT
POWER TRAIN
