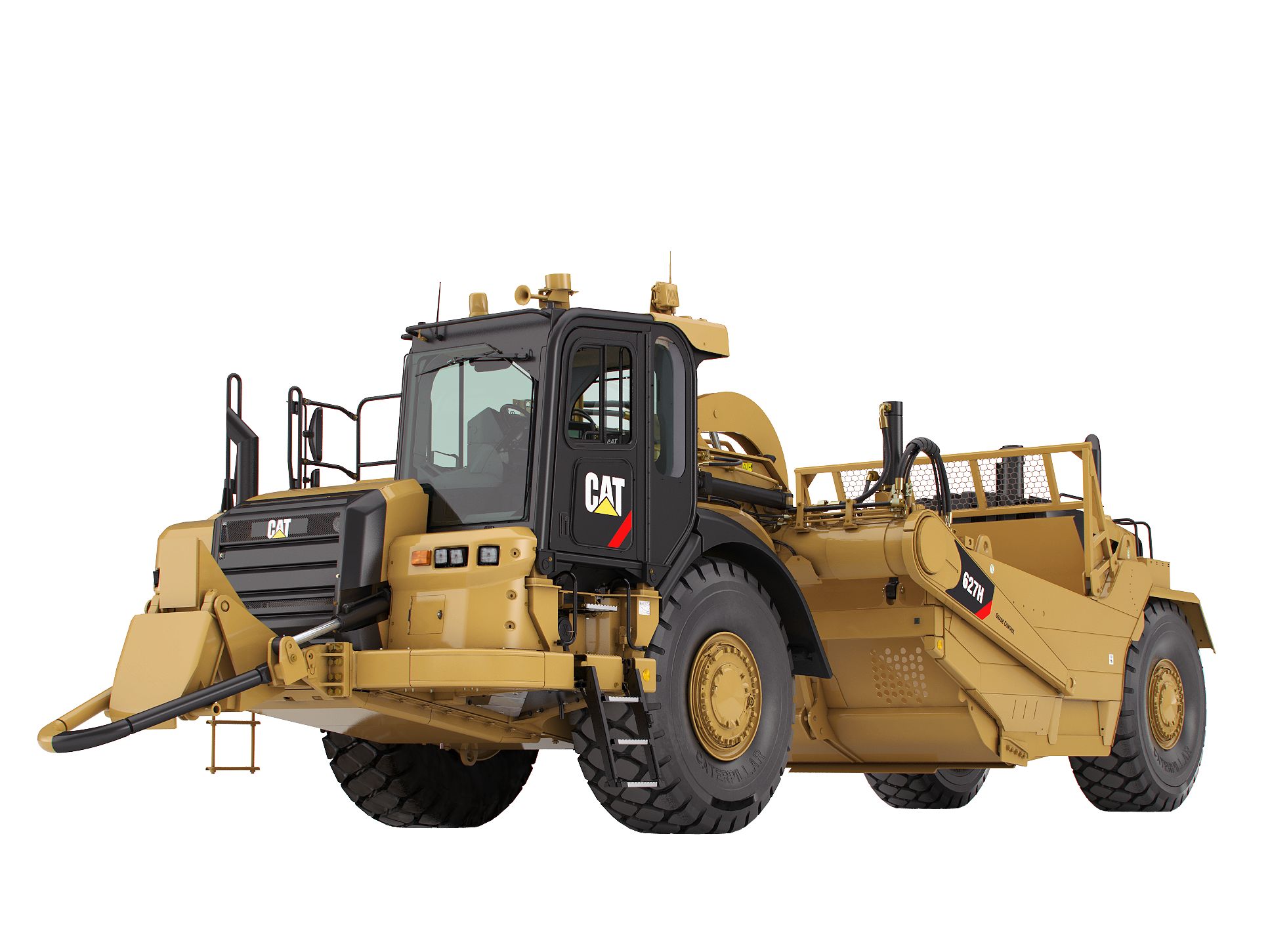

627H Wheel Tractor-Scraper

360 View

Product Description

Quick loading, high travel speeds and the ability to load and dump on the run yield fast cycle times, allowing Cat Wheel Tractor-Scrapers to consistently deliver high productivity at the lowest cost per ton.

Specifications
Us
Metric
Tractor Engine
Flywheel Power: Tractor/Scraper
304 kW (407 hp)/216 kW (290 hp)
Max. Power
407.0 hp
304.0 kW
Scraper Bowl
Scraper Capacity: Heaped
24.0 yd3
18.3 m3
Rated Load
57600.0 lb
26127.0 kg
Heaped Capacity
24.0 yd3
18.3 m3
Maximum Apron Closure Force
50580.0 lb
225.0 kN
Maximum Apron Opening
69.6 in
1767.0 mm
Maximum Depth of Cut
12.4 in
315.0 mm
Maximum Depth of Spread
21.3 in
540.0 mm
Maximum Ground Clearance at Cutting Edge
23.4 in
594.0 mm
Maximum Hydraulic Penetration Force
130390.0 lb
580.0 kN
Struck Capacity
17.1 yd3
13.0 m3
Thickness of Cutting Edge
0.9 in
22.0 mm
Width of Cut, Outside Router Bits
123.5 in
3136.0 mm
Transmission
Top Speed (Loaded)
33.5 mph
53.9 km/h
1 Forward
3.1 mph
5.0 km/h
2 Forward
5.5 mph
8.9 km/h
3 Forward
7.5 mph
12.1 km/h
4 Forward
10.1 mph
16.3 km/h
5 Forward
13.6 mph
21.9 km/h
6 Forward
18.4 mph
29.6 km/h
7 Forward
24.8 mph
39.9 km/h
8 Forward
33.5 mph
53.9 km/h
Reverse
5.7 mph
9.2 km/h
Engine
Scraper
Cat® C9.3 ACERT™
Tractor
Cat® C13 ACERT™
Scraper Engine
Max. Power
290.0 hp
216.0 kW
Tractor Engine - U.S. EPA Tier 4 Interim/EU Stage IIIB
Bore
5.1 in
130.0 mm
Displacement
763.0 in3
12.5 L
Max. Power (All Gears) (ISO 14396)
407.0 hp
304.0 kW
Max. Power Reference Engine Speed
1700.0 RPM
1700.0 RPM
Stroke
6.2 in
157.0 mm
Tractor Engine
Cat® C13 ACERT™
Tractor Engine - Prior U.S. EPA Tier 3/EU Stage IIIA configuration*
Bore
5.1 in
130.0 mm
Displacement
763.0 in3
12.5 L
Max. Power (All Gears) (ISO 14396)
407.0 hp
304.0 kW
Max. Power Reference Engine Speed
1700.0 RPM
1700.0 RPM
Stroke
6.2 in
157.0 mm
Tractor Engine
Cat® C13 ACERT™
Scraper Engine - U.S. EPA Tier 4 Interim/EU Stage IIIB
Bore
4.5 in
115.0 mm
Displacement
567.0 in3
9.29 L
Max. Power (All Gears) (ISO 14396)
290.0 hp
216.0 kW
Max. Power Reference Engine Speed
1900.0 RPM
1900.0 RPM
Stroke
5.9 in
149.0 mm
Tractor Engine
Cat® C9.3 ACERT™
Service Refill Capacities - Scraper
Engine Crankcase
7.5 gal
28.0 L
Fuel Tank
336.0 gal
1272.0 L
Transmission
13.0 gal
49.0 L
Differential
14.0 gal
53.0 L
Final Drive (per side)
5.0 gal
19.0 L
Cooling System
19.0 gal
72.0 L
Service Refill Capacities - Tractor
Engine Crankcase
8.75 gal
33.0 L
Windshield Washer Reservoir
1.3 gal
5.0 L
Transmission
18.5 gal
70.0 L
Differential
45.8 gal
173.0 L
Final Drive (per side)
5.0 gal
19.0 L
Cooling System
17.0 gal
64.0 L
Hydraulic Reservoir
22.0 gal
83.0 L
Weights - Machines meeting U.S. EPA Tier 4 Interim/EU Stage IIIB emission standards
Push-Pull - Loaded, based on a rated load
150565.0 lb
68295.0 kg
Push-Pull - Operating Weight - full fuel tanks
92964.0 lb
42168.0 kg
Push-Pull - Shipping Weight - 10% fuel
90729.0 lb
41154.0 kg
Standard - Loaded, based on a rated load
147798.0 lb
67040.0 kg
Standard - Operating Weight - full fuel tanks
90198.0 lb
40913.0 kg
Standard - Shipping Weight - 10% fuel
87962.0 lb
39899.0 kg
Scraper Engine - Prior U.S. EPA Tier 3/EU Stage IIIA configuration*
Bore
4.5 in
115.0 mm
Displacement
567.0 in3
9.29 L
Max. Power (All Gears) (ISO 14396)
290.0 hp
216.0 kW
Max. Power Reference Engine Speed
1900.0 RPM
1900.0 RPM
Stroke
5.9 in
149.0 mm
Tractor Engine
Cat® C9 ACERT
Standards
Standards
Standards
Steering
Steering Angle - Right
85º
Steering Angle - Left
82º
Weights - Machines achieving prior U.S. EPA Tier 3/EU Stage IIIA emission levels
Push-Pull - Loaded, based on a rated load
149654.0 lb
67882.0 kg
Push-Pull - Operating Weight - full fuel tanks
91981.0 lb
41722.0 kg
Push-Pull - Shipping Weight - 10% fuel
89818.0 lb
40741.0 kg
Standard - Loaded, based on a rated load
146887.0 lb
66627.0 kg
Standard - Operating Weight - full fuel tanks
89287.0 lb
40500.0 kg
Standard - Shipping Weight - 10% fuel
87052.0 lb
39486.0 kg
Hydraulics
Cushion Hitch Circuit Flow
10.6 gal/min
40.1 L/min
Push/Pull Bail Cylinder Bore
3.5 in
90.0 mm
Push/Pull Bail Cylinder Stroke
16.3 in
415.0 mm
Scraper Circuit Flow
66.0 gal/min
250.0 L/min
Secondary Steering Circuit Flow
10.3 gal/min
39.0 L/min
Steering Circuit Flow
61.8 gal/min
234.0 L/min
Bowl Cylinder Bore
5.5 in
140.0 mm
Bowl Cylinder Stroke
33.3 in
845.0 mm
Apron Cylinder Bore
5.9 in
150.0 mm
Apron Cylinder Stroke
22.2 in
565.0 mm
Ejector Cylinder Bore
5.5 in
140.0 mm
Ejector Cylinder Stroke
61.0 in
1550.0 mm
Standard/Optional

Standard Equipment

POWER TRAIN - TRACTOR
POWER TRAIN - SCRAPER
ELECTRICAL - TRACTOR
ELECTRICAL - SCRAPER
OPERATOR ENVIRONMENT - TRACTOR
FLUIDS
OTHER STANDARD EQUIPMENT - TRACTOR
OTHER STANDARD EQUIPMENT - SCRAPER

Optional Equipment

Push-pull arrangement
Sequence Assist
Load Assist
Cat Grade Control
Secondary Steering
Powered access ladder
Cat Active Ride Management (ARM) seat
Fast fuel fill
HID Work lights
Low ambient fluids -51° C (-61° F)
Work Area Vision System (WAVS) - three cameras showing right side, cutting edge and directly behind machine, display in cab
External steering lock
Cab precleaner
Cab rotating beacon
Air horn
