CB10 Tandem Vibratory Roller

360 View

Product Description

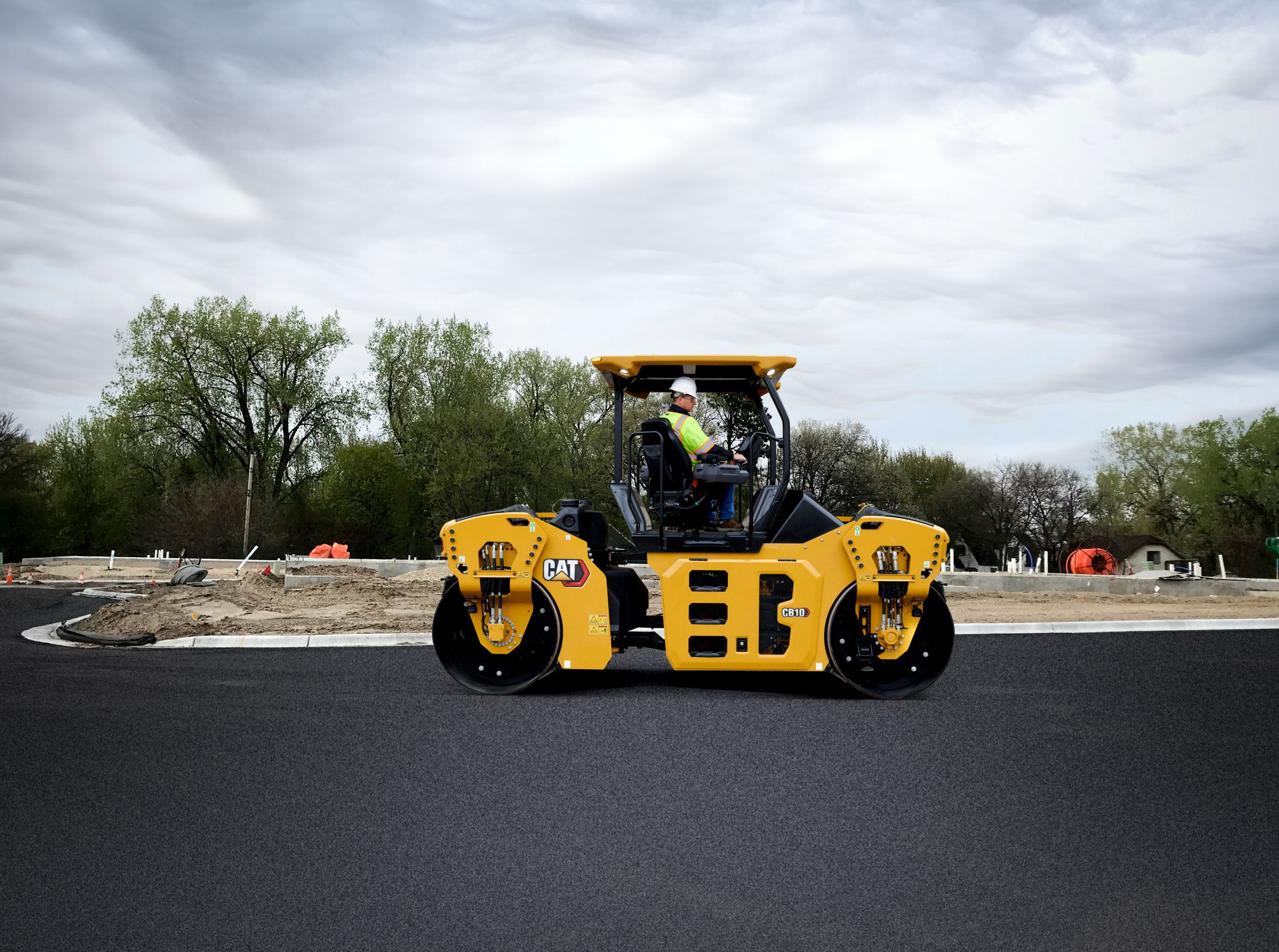

The Cat® CB10 Solid Drum is a 10 ton roller with 1700 mm (67") tandem vibratory drums. It excels on a variety of asphalt mix designs as well as other granular materials. It features exceptional visibility and control, smooth operating powertrain, and versatile vibratory systems including Oscillation Technology.

Specifications
Us
Metric
Weights
Operating Weight
20945 lb
9500 kg
Standard Operating Weight with Cab
21407 lb
9710 kg
Maximum Operating Weight with Cab
23171 lb
10510 kg
Standard Operating Weight with ROPS
20945 lb
9500 kg
Maximum Operating Weight with ROPS
22564 lb
10235 kg
Operating Specifications
Standard Compaction Width
67.0 in
1700.0 mm
Maximum Compaction Width
73.0 in
1940.0 mm
Static Linear Load
160 lb/in
28.5 kg/cm
Travel Speed - Maximum
7.5 mph
12.0 km/h
Engine
Gross Power
131 hp
98 kW
Engine Model
Cat C4.4 with ACERT Technology
Service Refill Capacities
Fuel Tank Capacity
55.0 gal
208.0 L
Water Spray Tank Capacity
221 gal
837 L
Vibratory System
Drum Width
67 in
1700.0 mm
Vibration Selection
Independent per drum, front only, rear only, both
Centrifugal Force per Drum - Maximum
28977 lb
128.9 kN
Centrifugal Force per Drum - Minimum
6092 lb
27.1 kN
Nominal Amplitude - High
0.033 in
0.84 mm
Nominal Amplitude - Low
0.007 in
0.18 mm
Dimensions
Overall Length
177.0 in
4565.0 mm
Overall Width
73.0 in
1872.0 mm
Height with ROPS/FOPS
117.0 in
2982.0 mm
Wheelbase
130.0 in
3300.0 mm
Drum Diameter
47.0 in
1198.0 mm
Standard/Optional

Optional Equipment

Air Conditioning
Air Suspension Seat w/heat
Bio-Degradeable Oil
Cat Compaction Control
Compaction Meter Value
Edge Cutter
Five Amplitude Vibratory System
Freeze Protection Kit (Water Spray)
Halogen Lights with Drum Edge Lighting
High Ambient Cooling System
High Intensity Discharge Lights
LED Lights
Machine to Machine Communication
Mirrors
Oscillation Technology
Product Link
Roading Lights
Recording Module
ROPS/FOPS Cab
Temperature Gauge
Two Amplitude, Two Frequency Vibratory System
Warning Beacon
Water Distribution Mats
Versa Vibe Vibratory System
