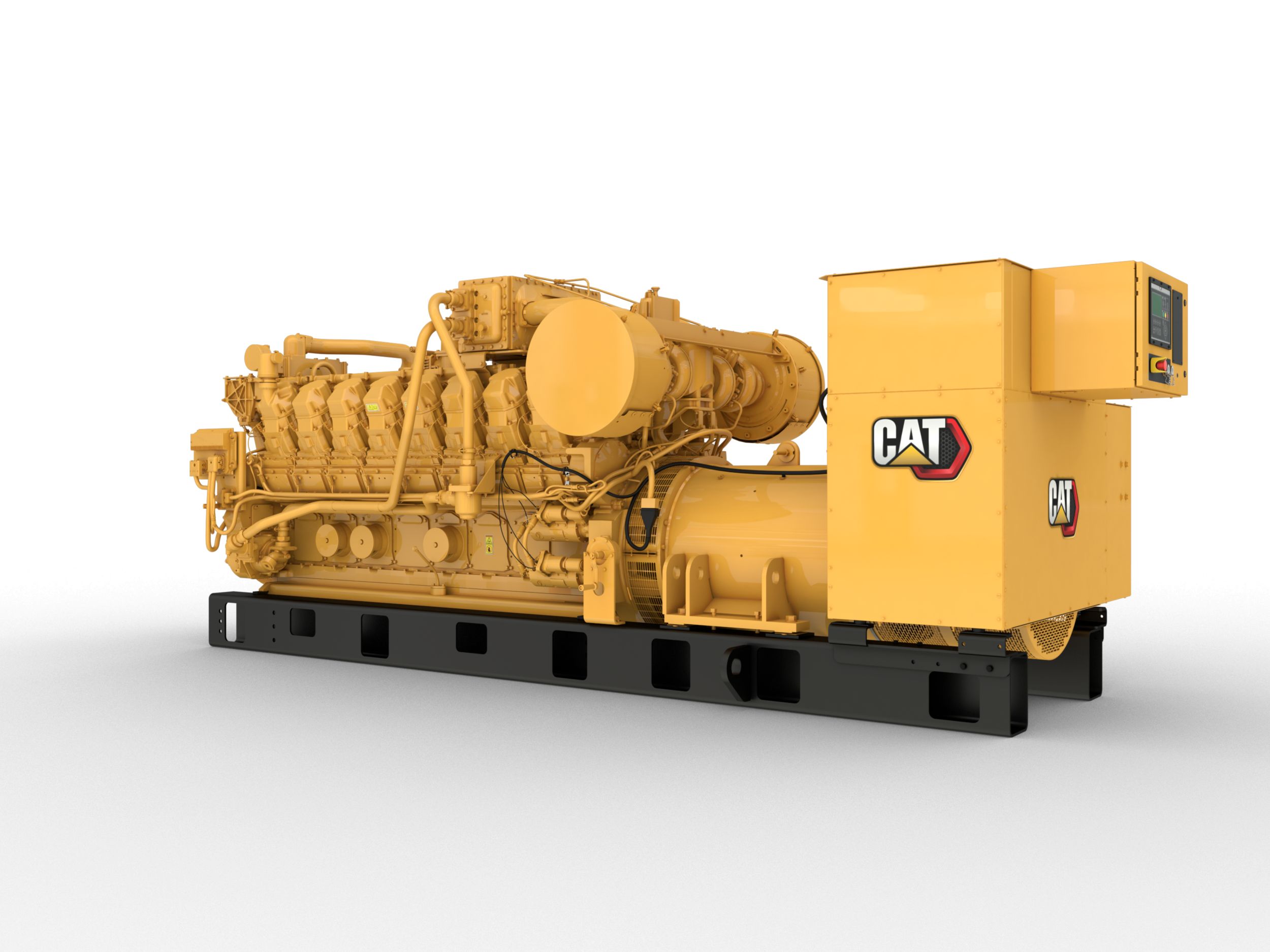

Gas Generator G3516A

Product Description

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Specifications
Us
Metric
Gas Generator Sets Specification
Maximum Continuous Rating
1041 ekW
Fuel Type
Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency
36.4%
Maximum Standby Rating
1000 kw
Frequency
50/60Hz
rpm
1200/1500rpm
Engine Specification
Engine Model
G3516A
Bore
6.7 in
170.0 mm
Stroke
7.5 in
190.0 mm
Displacement
4210.0 in3
69.0 L
Aspiration
TA
Generator Set Dimension
Length
193.0 in
4913.0 mm
Width
68.0 in
1736.0 mm
Height
76.0 in
1940.0 mm
Dry weight genset
27670.0 lb
12549.0 kg
Standard/Optional

Standard Equipment

Air Inlet
Control Panels
Cooling
Exhaust
Fuel system
Generator
Starting/Charging
General

Optional Equipment

Air Inlet
Control Panels
Cooling
Exhaust
Fuel System
Generator
Start/Charging
General
